Ignition and shift interlock – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Ignition and shift interlock – circuit diagram
‹ Prev Ignition and shift interlock – circuit diagramNext › Anti-lock brake system – circuit diagram
Ignition and shift interlockIgnition and shift interlock – circuit diagram

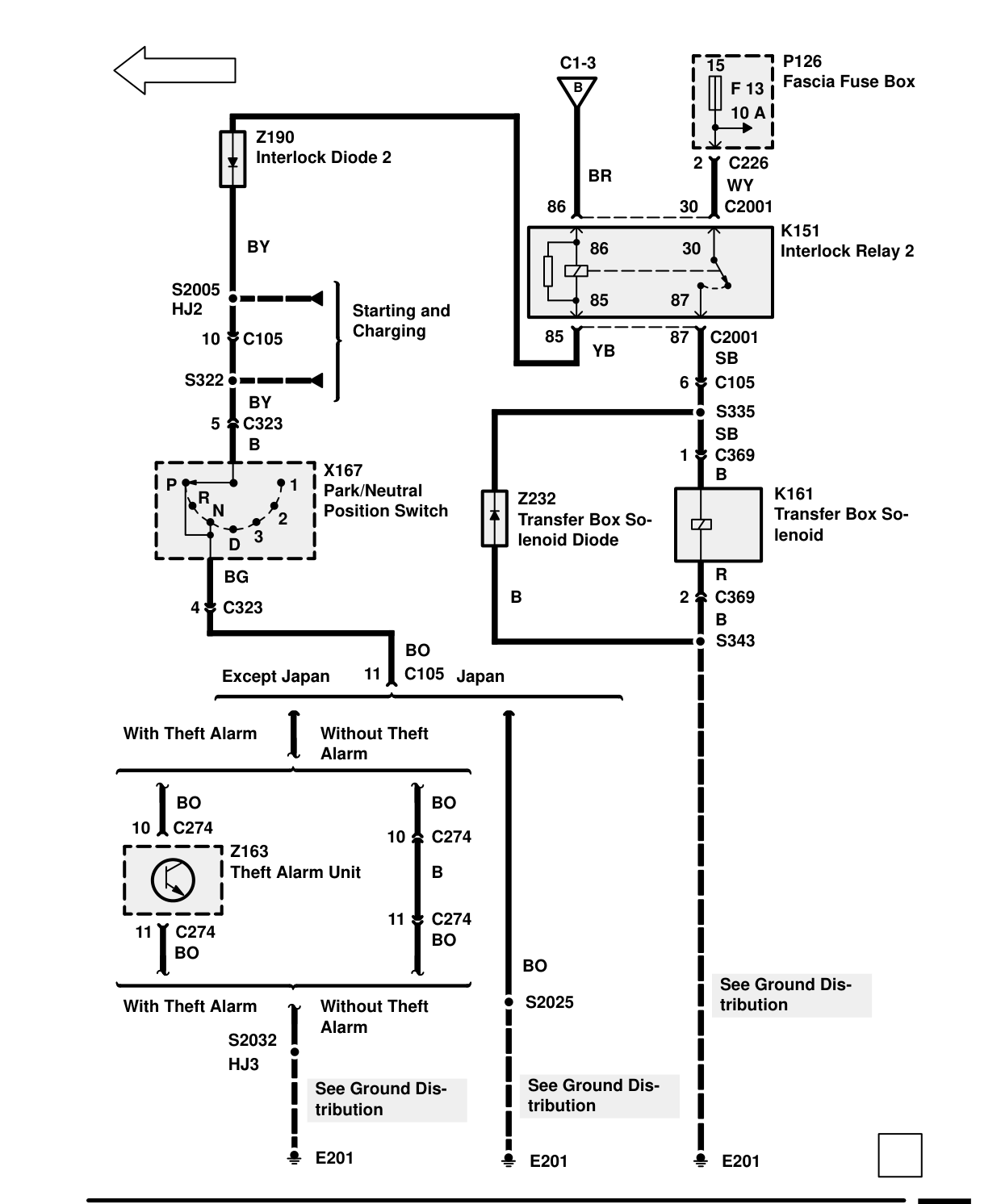

IGNITION AND SHIFT INTERLOCK – CIRCUIT DIAGRAM
Components on this page
- K151 Interlock Relay 2
- K161 Transfer Box Solenoid
- P126 Fascia Fuse Box
- X167 Park/Neutral Position Switch
- Z163 Theft Alarm Unit
- Z190 Interlock Diode 2
- Z232 Transfer Box Solenoid Diode
