Land Rover Discovery Electrical Troubleshooting Manual (1997 on)31 · Interior lamps
31 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1997 on
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

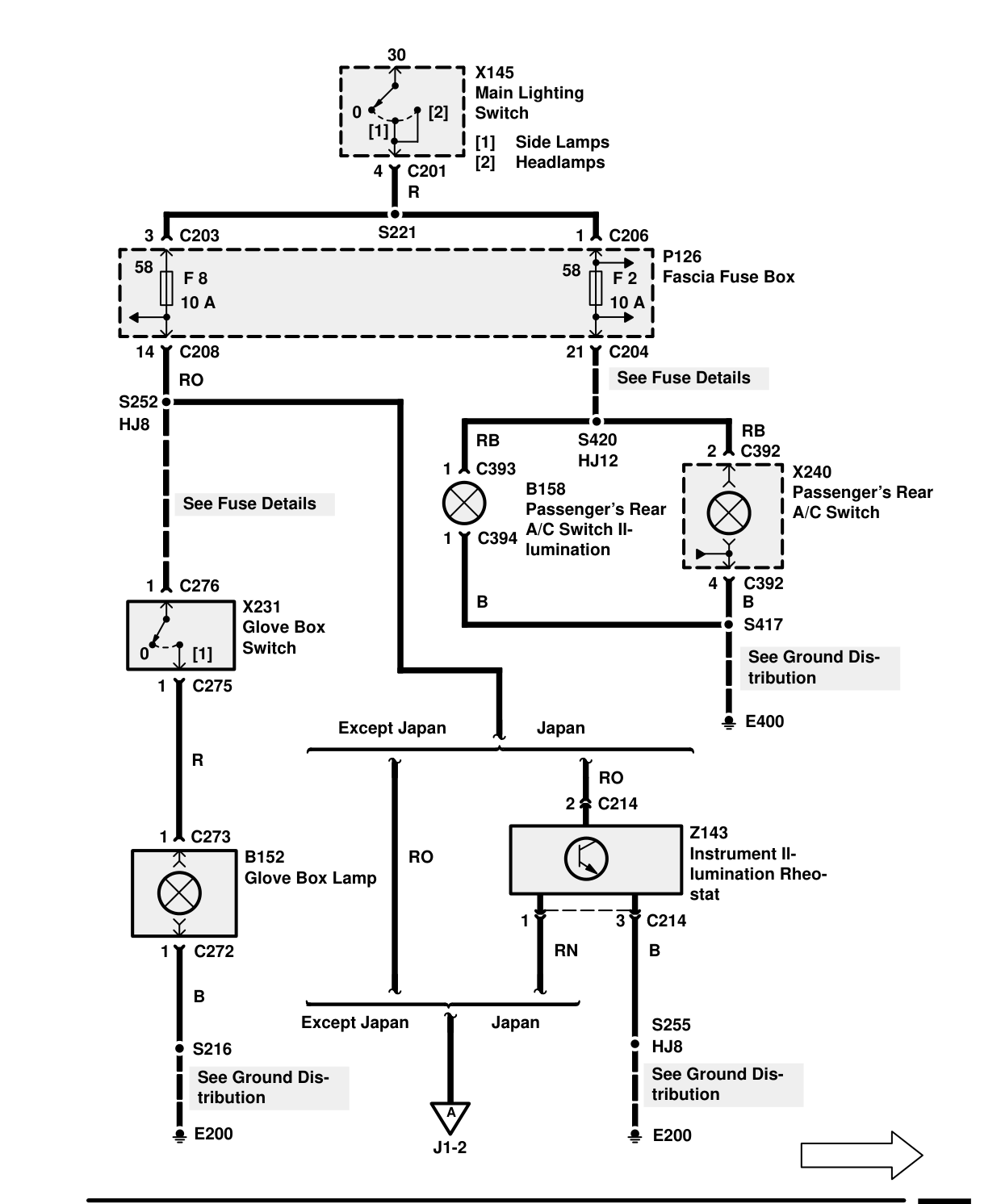

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • B152 Glove Box Lamp
  • P126 Fascia Fuse Box
  • X145 Main Lighting Switch
  • X231 Glove Box Switch
  • Z143 Instrument Illumination Rheostat
