Land Rover Discovery Electrical Troubleshooting Manual (1997 on)31 · Interior lamps
31 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1997 on
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

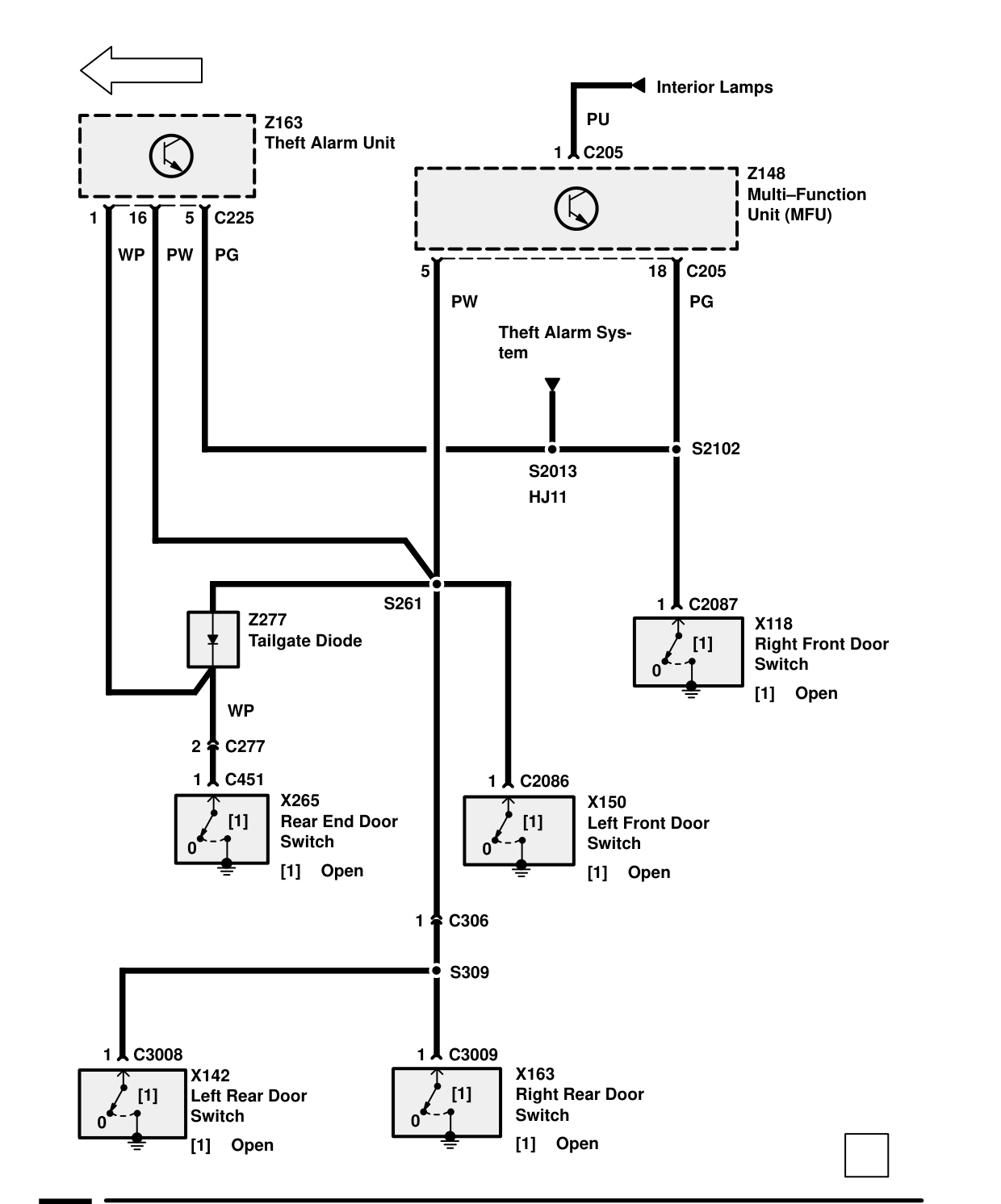

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • X118 Right Front Door Switch
  • X142 Left Rear Door Switch
  • X150 Left Front Door Switch
  • X163 Right Rear Door Switch
  • X265 Rear End Door Switch
  • Z148 Multi-Function Unit (MFU)
  • Z163 Theft Alarm Unit
  • Z277 Tailgate Diode
