Land Rover Discovery Electrical Troubleshooting Manual (1997 on)31 · Interior lamps
31 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Discovery Electrical Troubleshooting Manual
Year
1997 on
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

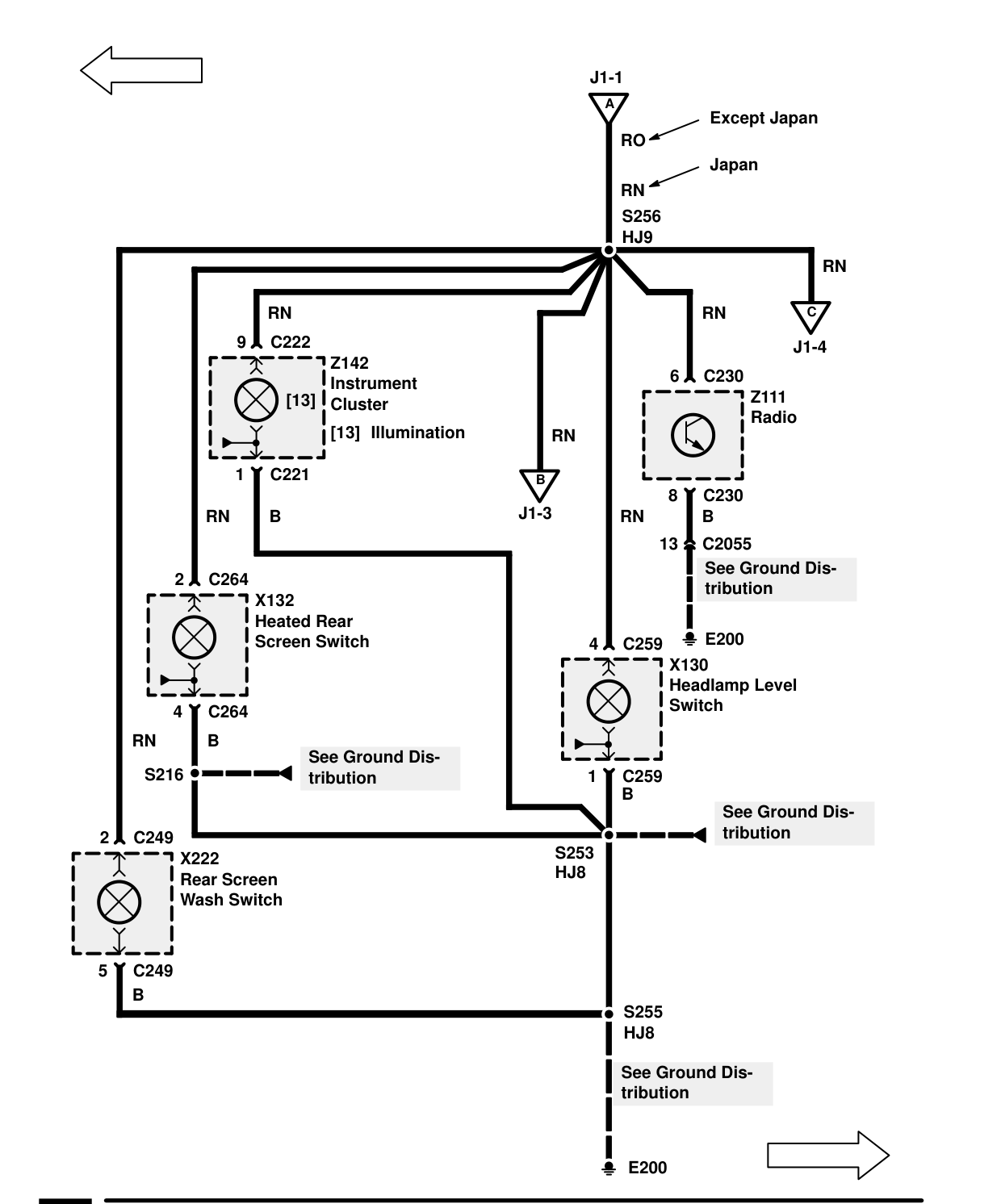

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • X130 Headlamp Level Switch
  • X132 Heated Rear Screen Switch
  • X222 Rear Screen Wash Switch
  • Z111 Radio
  • Z142 Instrument Cluster
