Multi-function unit (MFU)
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Rev: 11/97 › Multi-function unit (MFU)
‹ Prev Multi-function unit (MFU) – circuit diagram rev: 11/97Next › Headlamps (except Japan) – circuit diagram
Multi-function unit (MFU)Multi-function unit (MFU)

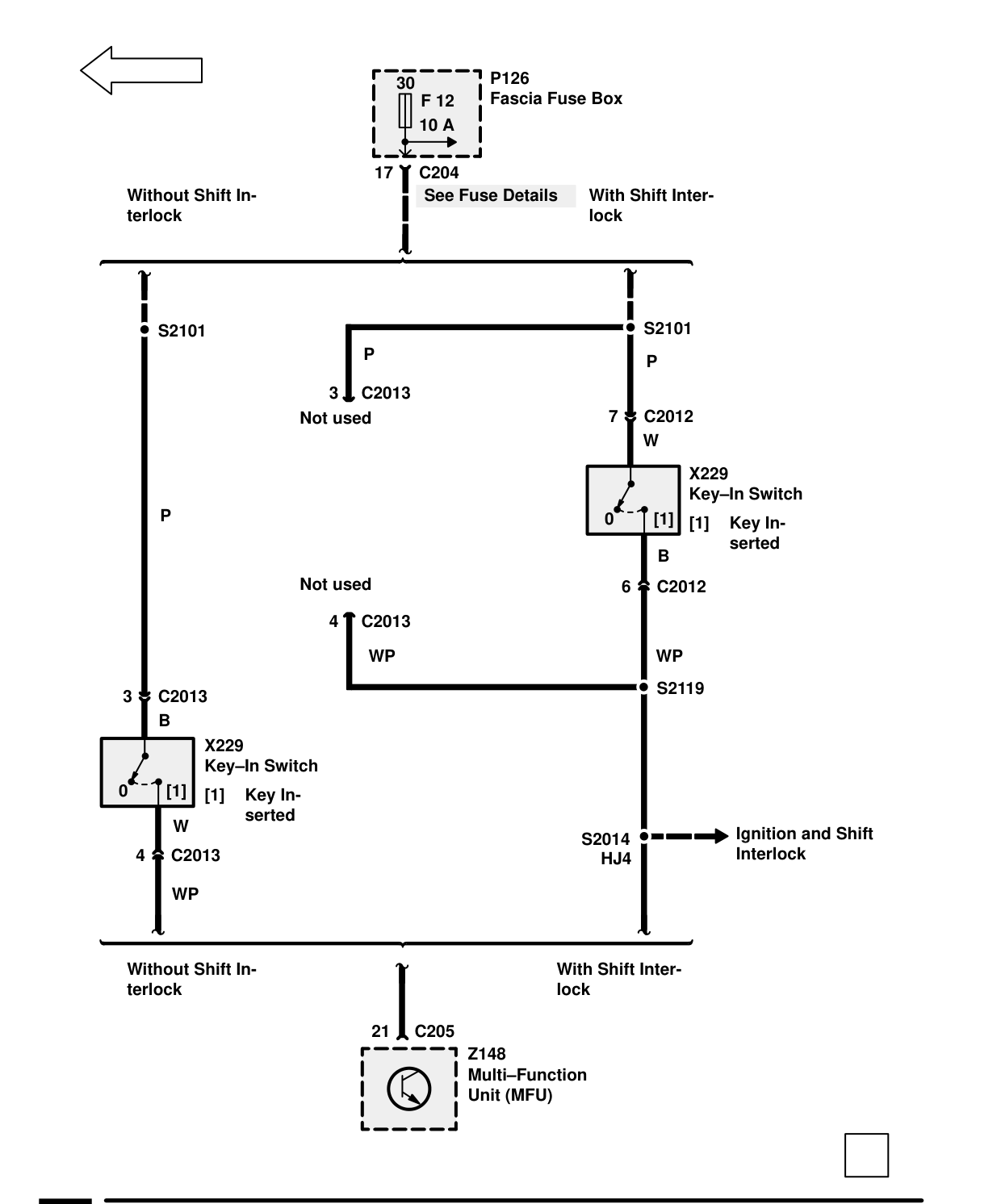

MULTI-FUNCTION UNIT (MFU)
30 F 12 10 A
17 C204 Without Shift In- See Fuse Details terlock
S2101 P
3 C2013 Not used
P
Not used
4 C2013
WP
3 C2013 B X229 Key-In Switch 0 [1] [1] Key In- serted W 4 C2013
WP
Without Shift In- terlock
21 C205
P126 Fascia Fuse Box
With Shift Inter- lock
S2101 P
7 C2012 W X229 Key-In Switch 0 [1] [1] Key In- serted B 6 C2012
WP S2119
Ignition and Shift S2014 Interlock HJ4
With Shift Inter- lock
Z148 Multi-Function Unit (MFU)
