Radio (NAS)Radio (NAS) – circuit diagram rev: 06/97

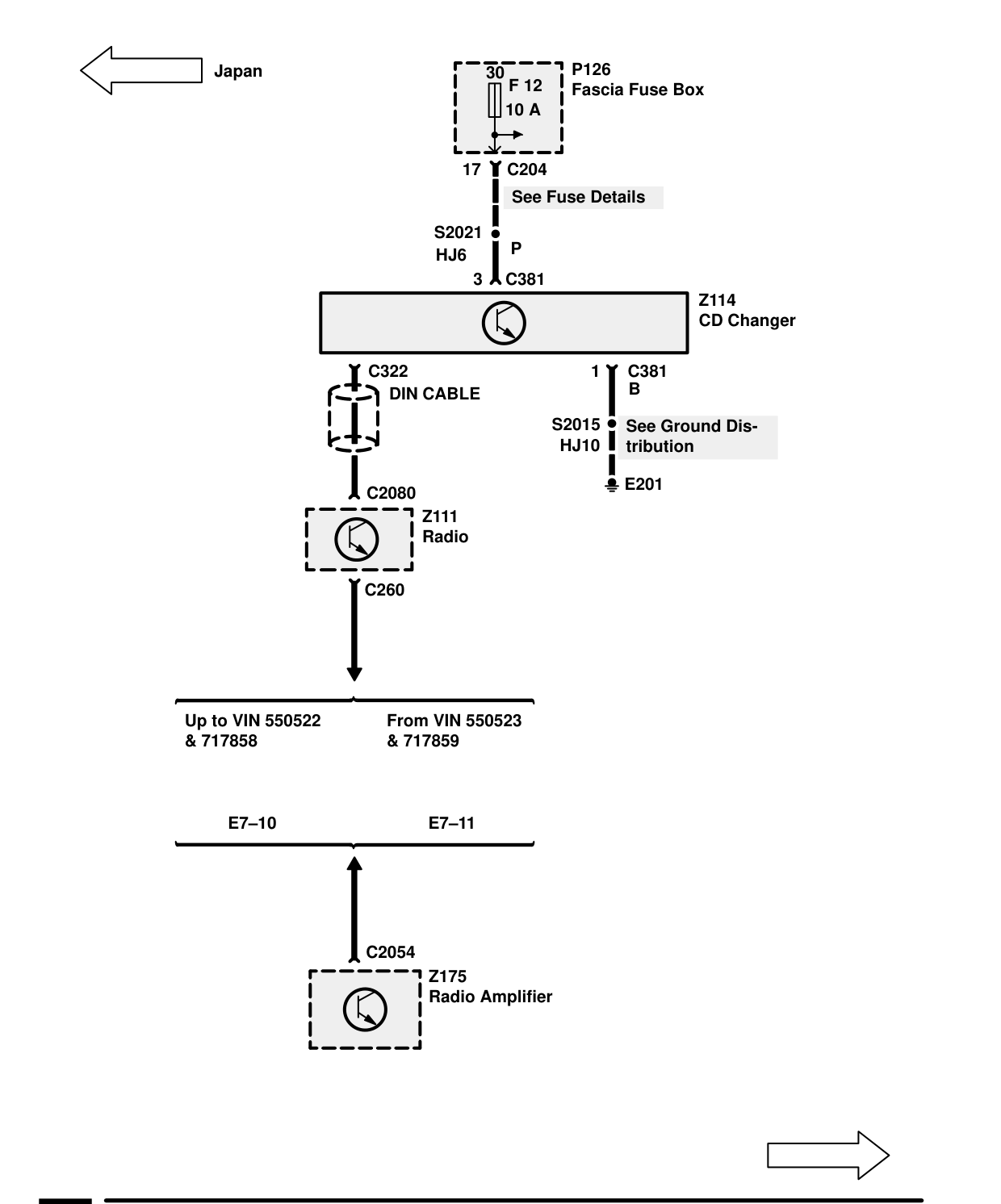

RADIO (NAS) – CIRCUIT DIAGRAM REV: 06/97
Components on this page
- P126 Fascia Fuse Box Japan
- Z111 Radio
- Z175 Radio Amplifier
