Radio (NAS) – circuit diagram rev: 06/97
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram rev: 06/97 › Radio (NAS) – circuit diagram rev: 06/97
‹ Prev Radio (NAS) – circuit diagram rev: 06/97Next › Radio (NAS) – radio (NAS) (up to VIN 550522 & 717858)
Radio (NAS)Radio (NAS) – circuit diagram rev: 06/97

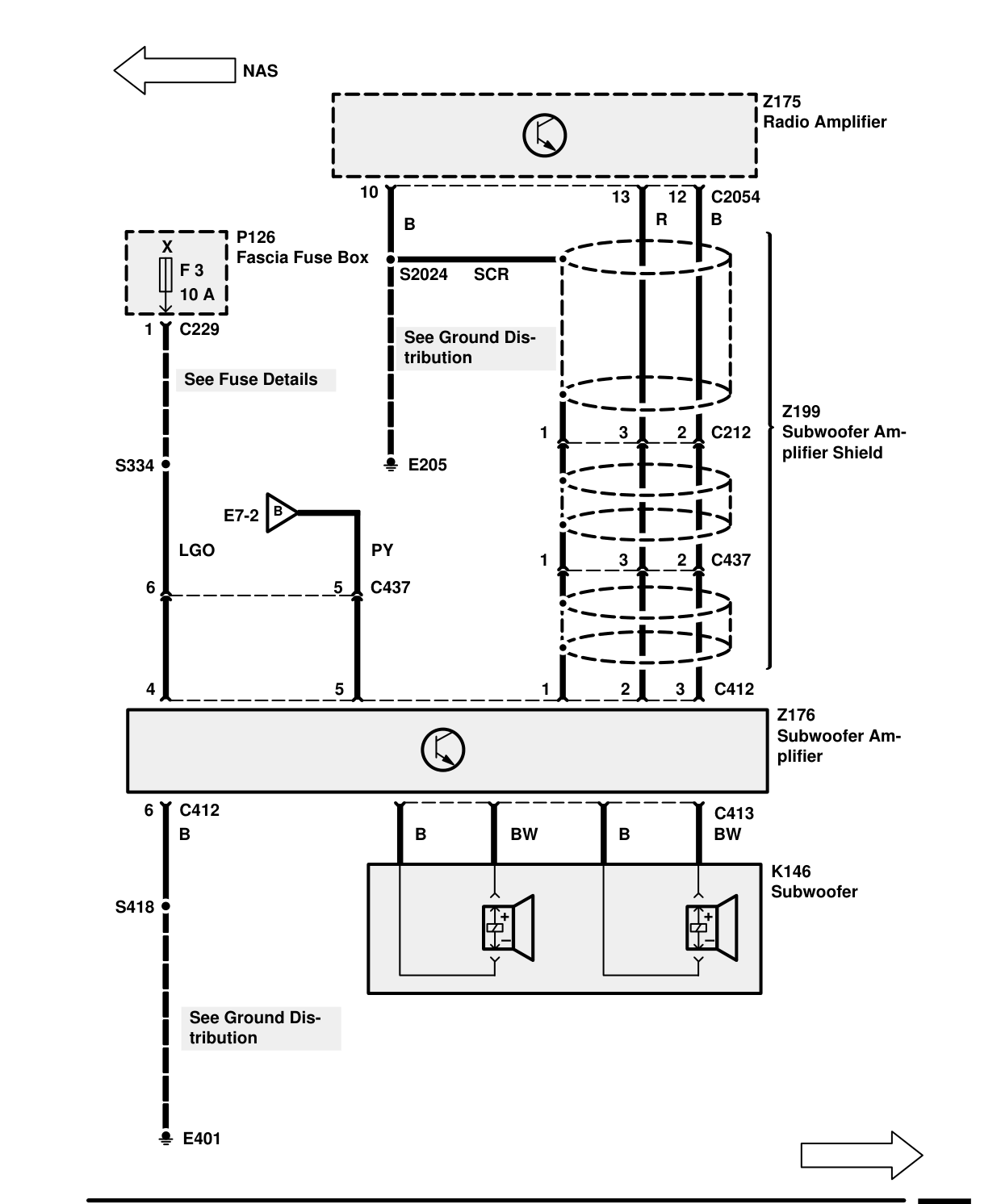

RADIO (NAS) – CIRCUIT DIAGRAM REV: 06/97
Components on this page
- K146 Subwoofer
- P126 Fascia Fuse Box
- Z175 Radio Amplifier
- Z176 Subwoofer Amplifier
- Z199 Subwoofer Amplifier Shield
