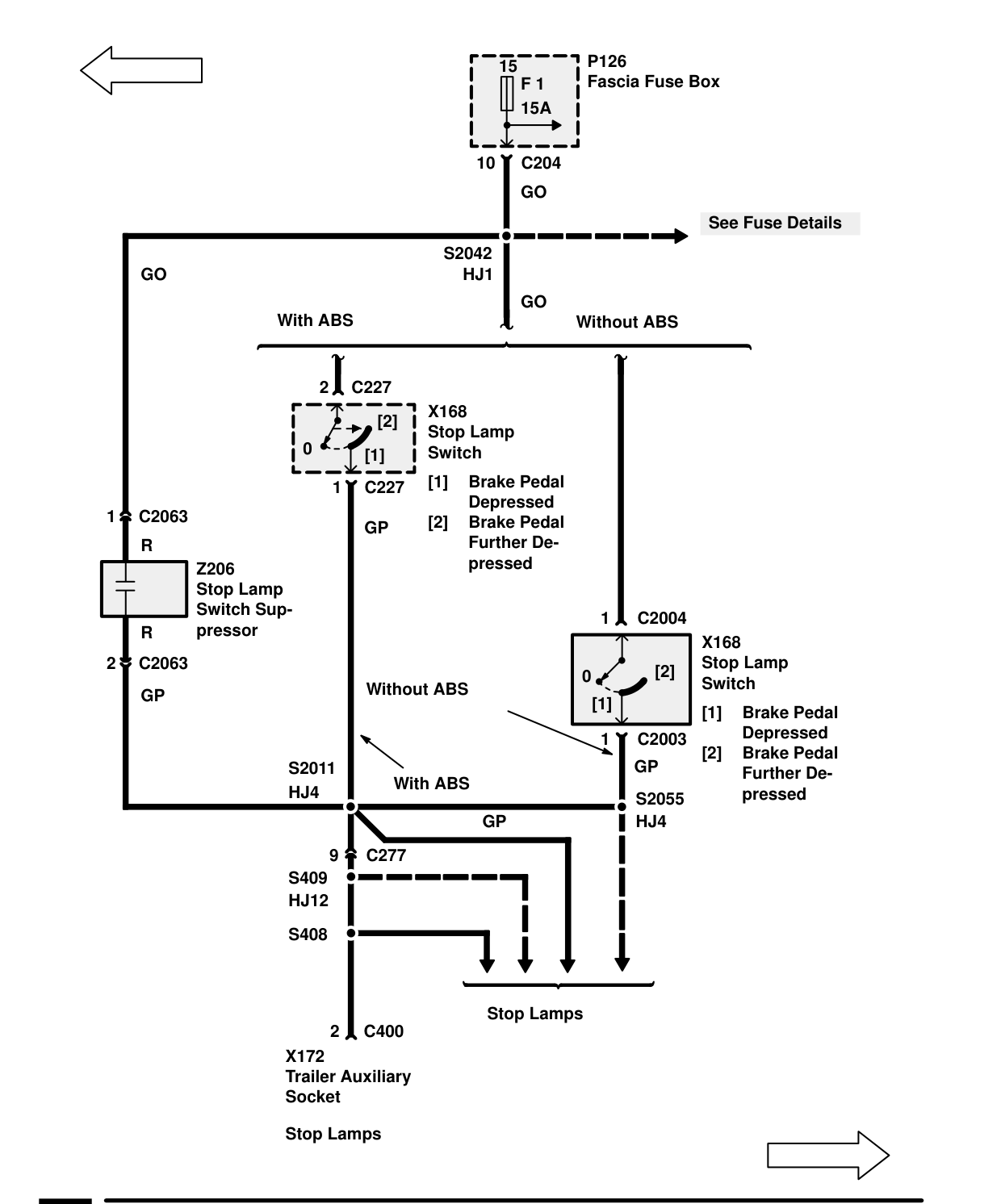

Trailer auxiliary socket – circuit diagram

TRAILER AUXILIARY SOCKET – CIRCUIT DIAGRAM

GO

With ABS

2 C227

[2] 0 [1] 1 C227 1 C2063 GP R Z206 Stop Lamp Switch Sup- pressor R 2 C2063 Without ABS GP

S2011 With ABS HJ4

9 C277 S409 HJ12

S408

2 C400 X172 Trailer Auxiliary Socket

Stop Lamps

P126 15 Fascia Fuse Box F 1 15A

10 C204 GO See Fuse Details S2042 HJ1 GO Without ABS

X168 Stop Lamp Switch [1] Brake Pedal Depressed [2] Brake Pedal Further De- pressed

1 C2004 X168 Stop Lamp [2] 0 Switch [1] [1] Brake Pedal Depressed 1 C2003 [2] Brake Pedal GP Further De- pressed S2055 HJ4 GP

Stop Lamps
