Warnings and indicators – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Warnings and indicators – circuit diagram
Warnings and indicatorsWarnings and indicators – circuit diagram

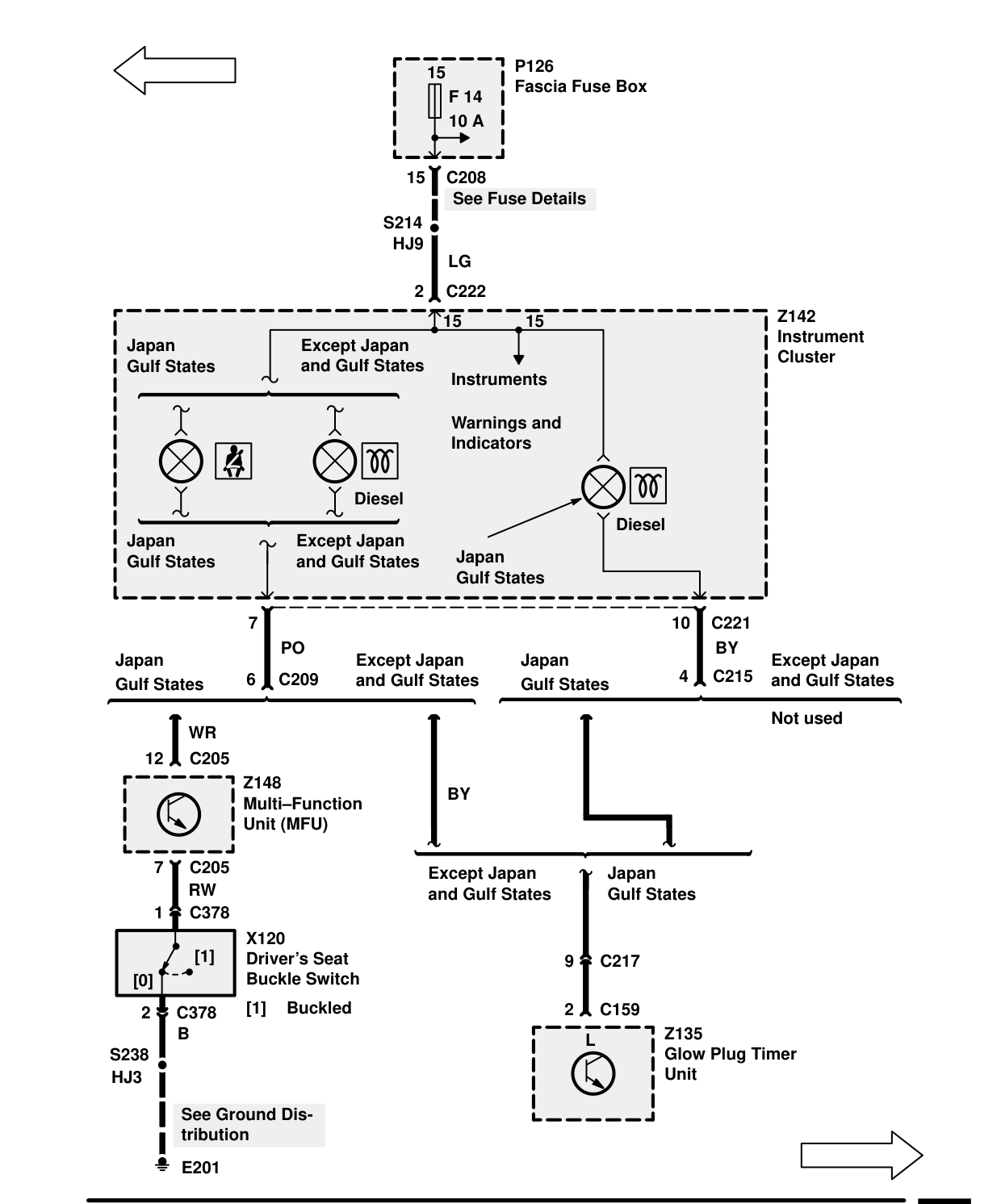

WARNINGS AND INDICATORS – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- X120 Driver’s Seat Buckle Switch
- Z142 Instrument Cluster
