Discovery II
ENGINE - V8
12-2-28 REPAIRS

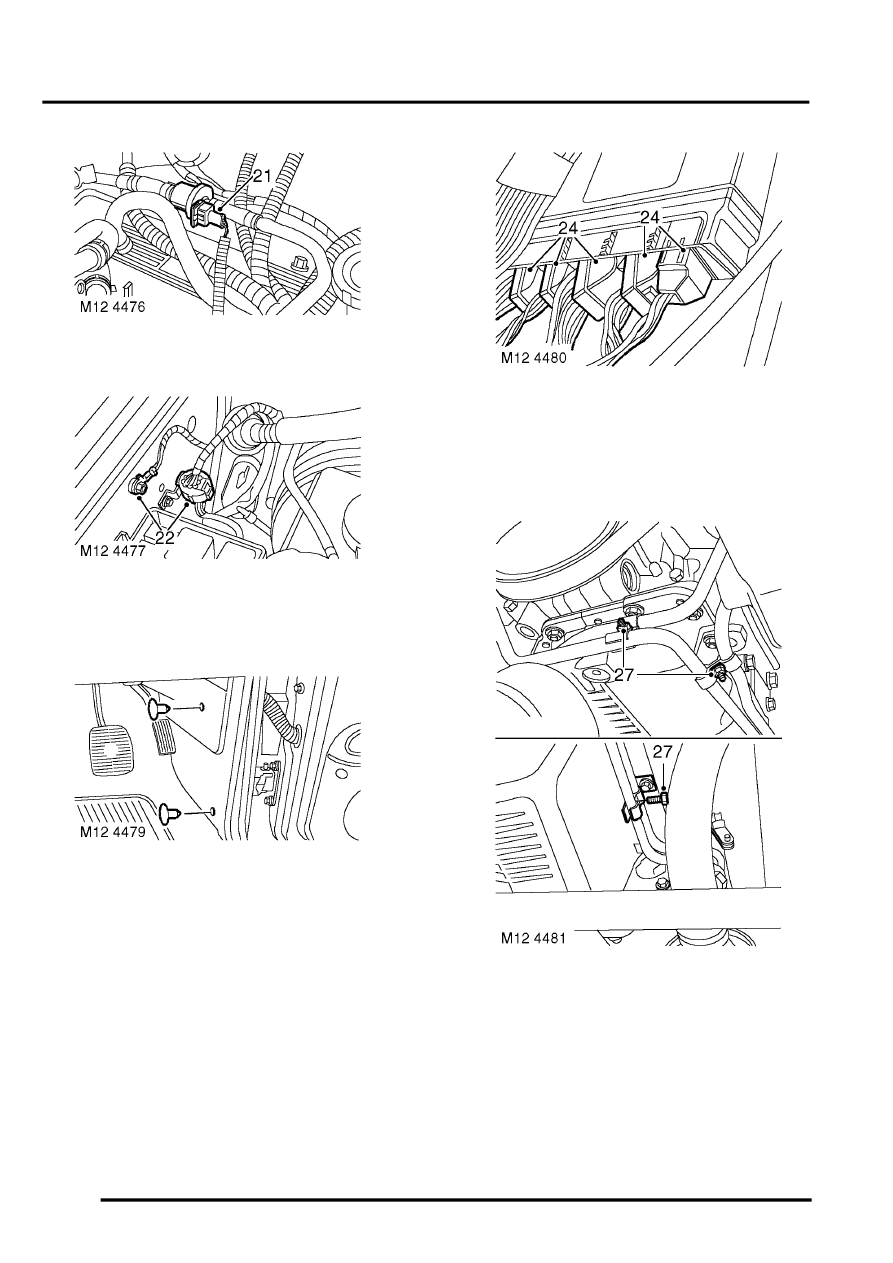

21. Disconnect multiplug from EVAP purge valve.
22. Remove nut securing engine harness earth to
body and disconnect engine harness to main
harness multiplug.
23. Remove trim fixings securing toe board and
remove toe board.
24. Disconnect 5 multiplugs connecting engine
harness to ECM.
25. Release engine harness, pull into engine bay
and coil on top of engine.
26. Raise vehicle on ramp.
27. Remove 3 bolts securing oil cooling pipes to
sump and remove saddle clamps.
28. Tie oil cooling pipes aside.
29. Remove exhaust front pipe.
