Discovery II
ENGINE - V8
REPAIRS 12-2-29

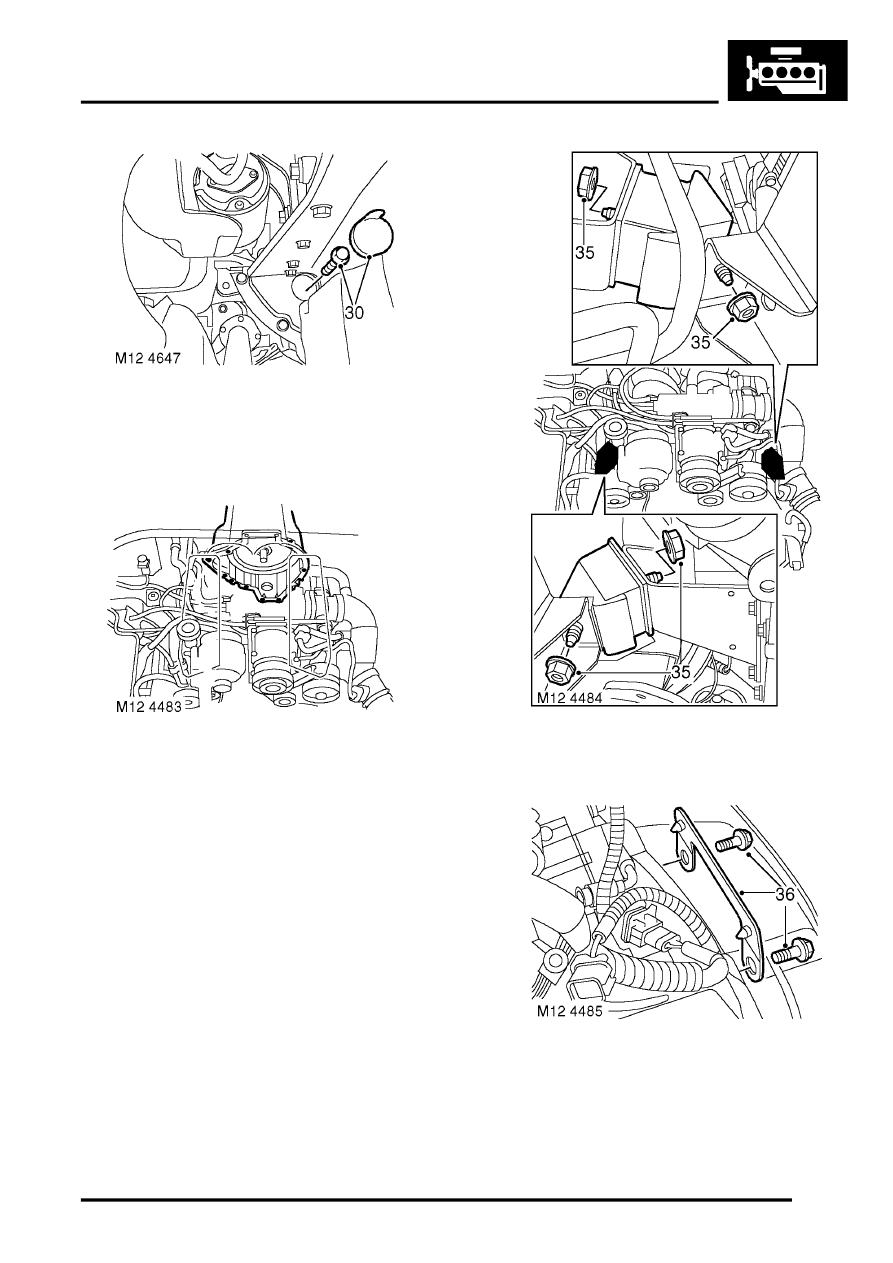

30. Models with automatic gearbox: Remove
access plug and remove 4 bolts securing
torque converter to drive plate.
31. Rotate engine to access bolts.
32. Remove 12 bolts securing engine to gearbox.
DO NOT remove the top 2 bolts at this
stage.
33. Collect support brackets from bell housing
bolts.
34. Attach suitable lifting equipment to engine.
35. Remove 4 nuts securing engine mountings,
raise engine and remove engine mountings.
36. Lower engine, remove top bolts securing
engine to gearbox and collect bracket.
37. Support gearbox on a jack.
38. Release engine from gearbox dowels.
39. With assistance remove engine from engine
bay.
