Camshaft timing belt components (Engine - L Series)
- Make
- Land Rover
- Model
- Freelander Workshop Manual
- Year
- 1998–2000
- Section
- Description and operation › Camshaft timing belt components
Engine - L SeriesCamshaft timing belt components · page 1 of 2

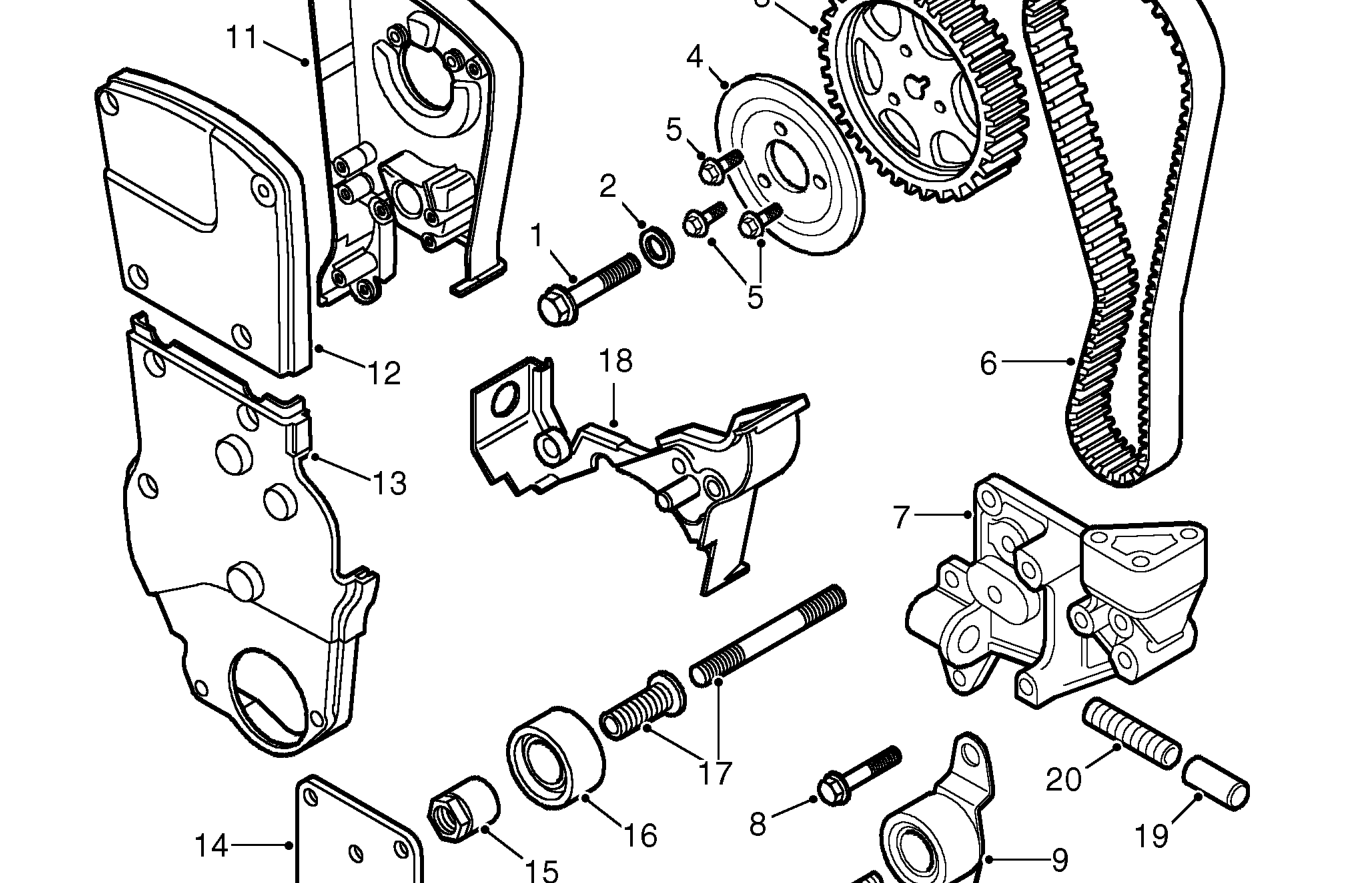

CAMSHAFT TIMING BELT COMPONENTS
- Bolt - timing belt gear
- Washer
- Timing belt gear
- Timing belt gear - damper
- Torx screws - damper to timing gear
- Camshaft timing belt
- Tensioner housing
- Bolt - tensioner pulley
- Tensioner pulley
- Allen screw - tensioner pulley
- Timing belt upper rear cover
- Timing belt upper front cover
- Timing belt lower front cover
- Engine front mounting cover plate
- Nut - idler pulley
- Idler pulley
- Stud and adaptor - idler pulley
- Timing belt lower rear cover
- Tensioner plunger
- Tensioner spring
