Cylinder head components (Engine - L Series)

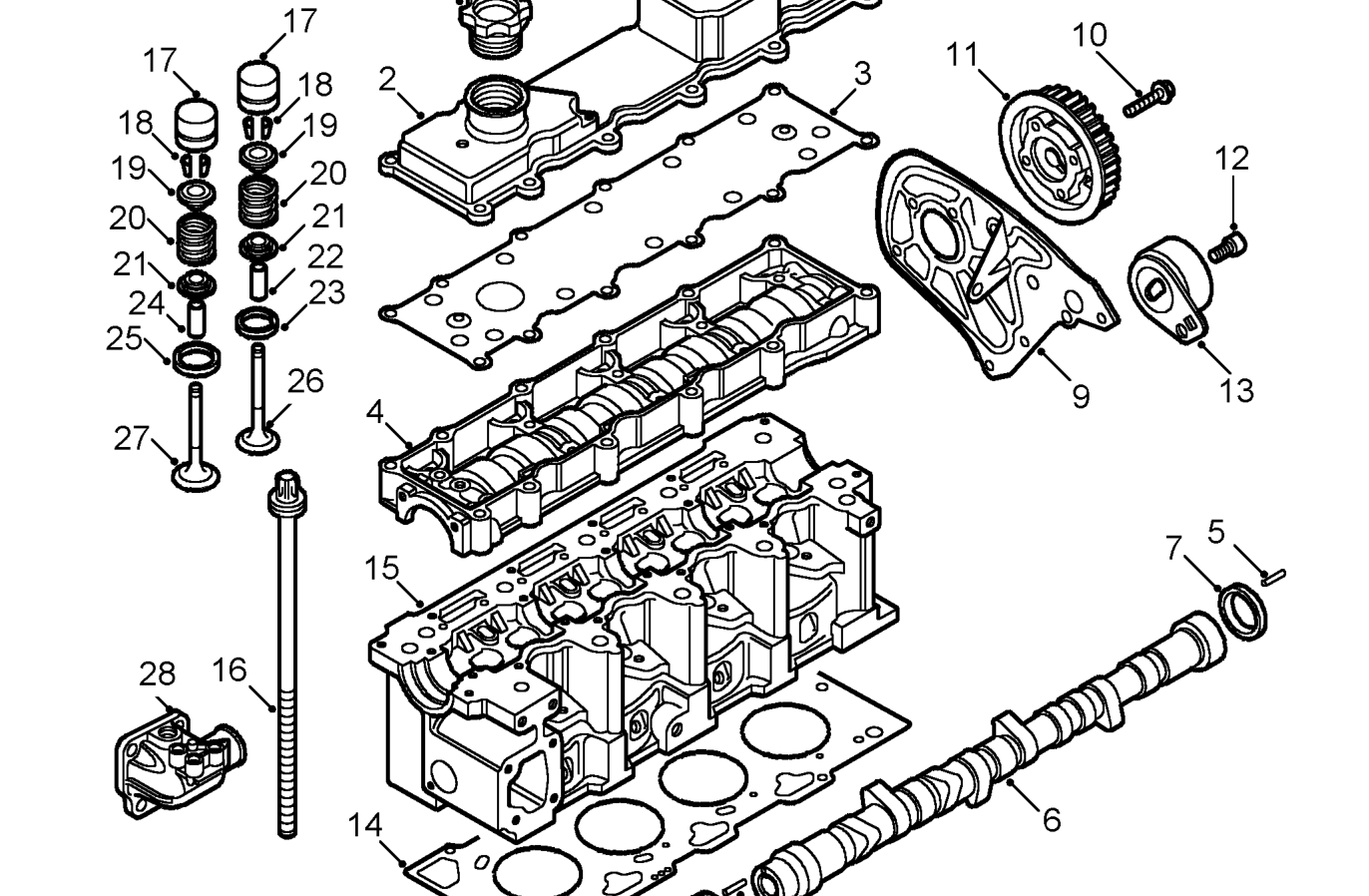

CYLINDER HEAD COMPONENTS

1. Oil filler cap
2. Camshaft cover
3. Gasket - camshaft cover
4. Camshaft carrier
5. Drive pin
6. Camshaft
7. Camshaft rear oil seal
8. Camshaft front oil seal
9. Fuel injection pump drive belt rear cover
10. Bolt - fuel injection pump drive gear
11. Fuel injection pump drive gear
12. Allen screw
13. Fuel injection pump drive belt tensioner
14. Gasket - cylinder head
15. Cylinder head
16. Bolt - cylinder head
17. Tappet
18. Collets
19. Spring cap
20. Valve spring
21. Spring seat and valve stem oil seal
22. Valve guide - exhaust
23. Valve seat insert - exhaust
24. Valve guide - inlet
25. Valve seat insert - inlet
26. Exhaust valve
27. Inlet valve
28. Coolant outlet elbow
