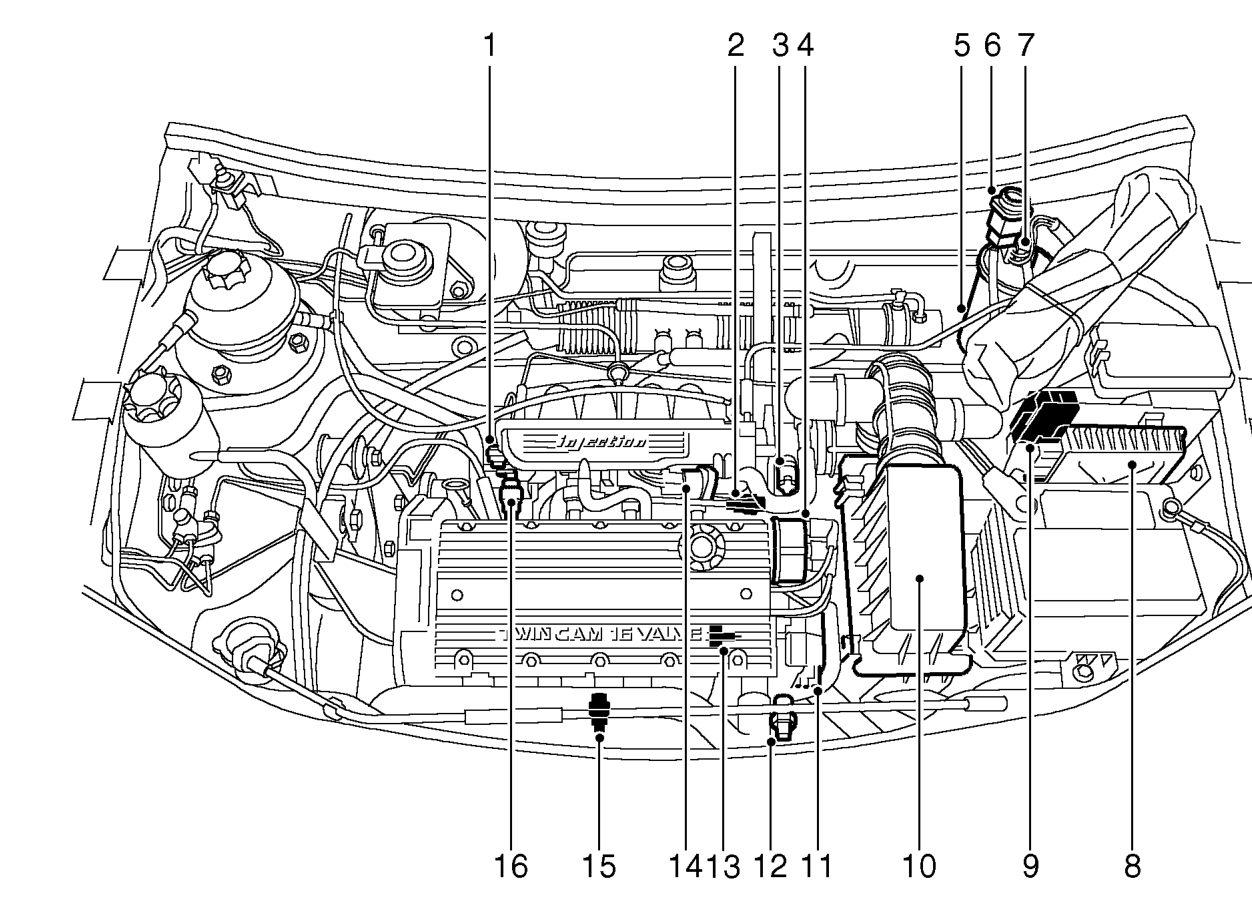

ENGINE COMPARTMENT COMPONENT LOCATIONS

1. Fuel pressure accumulator
2. Intake air temperature (IAT) sensor
3. Throttle position (TP) sensor
4. Distributor cap
5. Evaporative (EVAP) emission cannister
6. Inertia fuel shut-off switch
7. Evaporative (EVAP) emission purge valve
8. Engine control module (ECM)
9. Relay module
10. Air cleaner
11. Ignition coil
12. Engine coolant temperature (ECT) sensor
13. Crankshaft position (CKP) sensor
14. Idle air control (IAC) valve
15. Heated oxygen sensor (HO2S)
16. Injectors
