Anti-roll bar

ANTI-ROLL BAR

Service repair no - 60.10.01

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).
3. Remove underbelly panel. See BODY, Repairs.

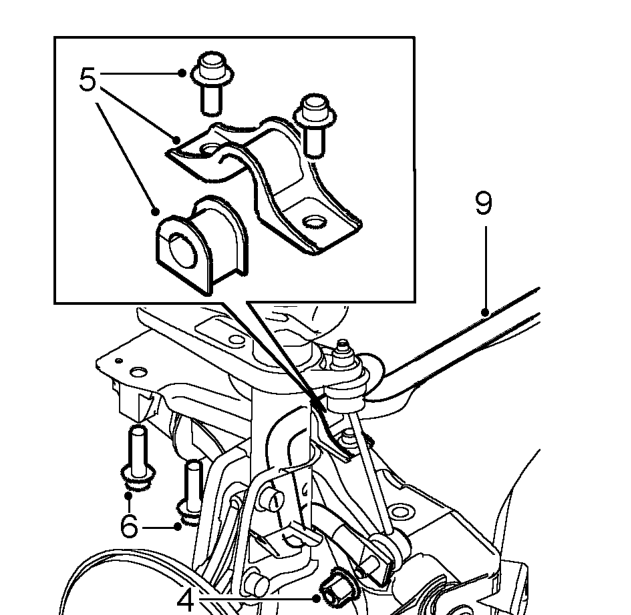

4. Remove nuts securing each end of anti-roll bar to links.
5. Remove 4 bolts securing anti-roll bar saddles, collect saddles and rubber bushes.
6. Remove 4 bolts securing both lower arm rear bush housings.
7. Remove and discard 2 bolts securing front subframe to body.
8. Lower front subframe to release anti-roll bar.
9. Remove anti-roll bar.

Refit

1. Position anti-roll bar.
2. With assistance raise front subframe.
3. Fit new bolts securing front subframe to body and tighten to 190 Nm.
4. Fit bolts securing lower arm rear bush housings and tighten to 105 Nm.
5. Position anti roll bar rubbers, bushes and saddles.
6. Fit saddle bolts and tighten to 23 Nm .
7. Fit nuts to anti-roll bar links and tighten to 55 Nm.
8. Fit underbelly panel. See BODY, Repairs.
9. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
10. Remove stand(s) and lower vehicle.
