BEARING - HUB - FRONT

Service repair no - 60.25.14

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

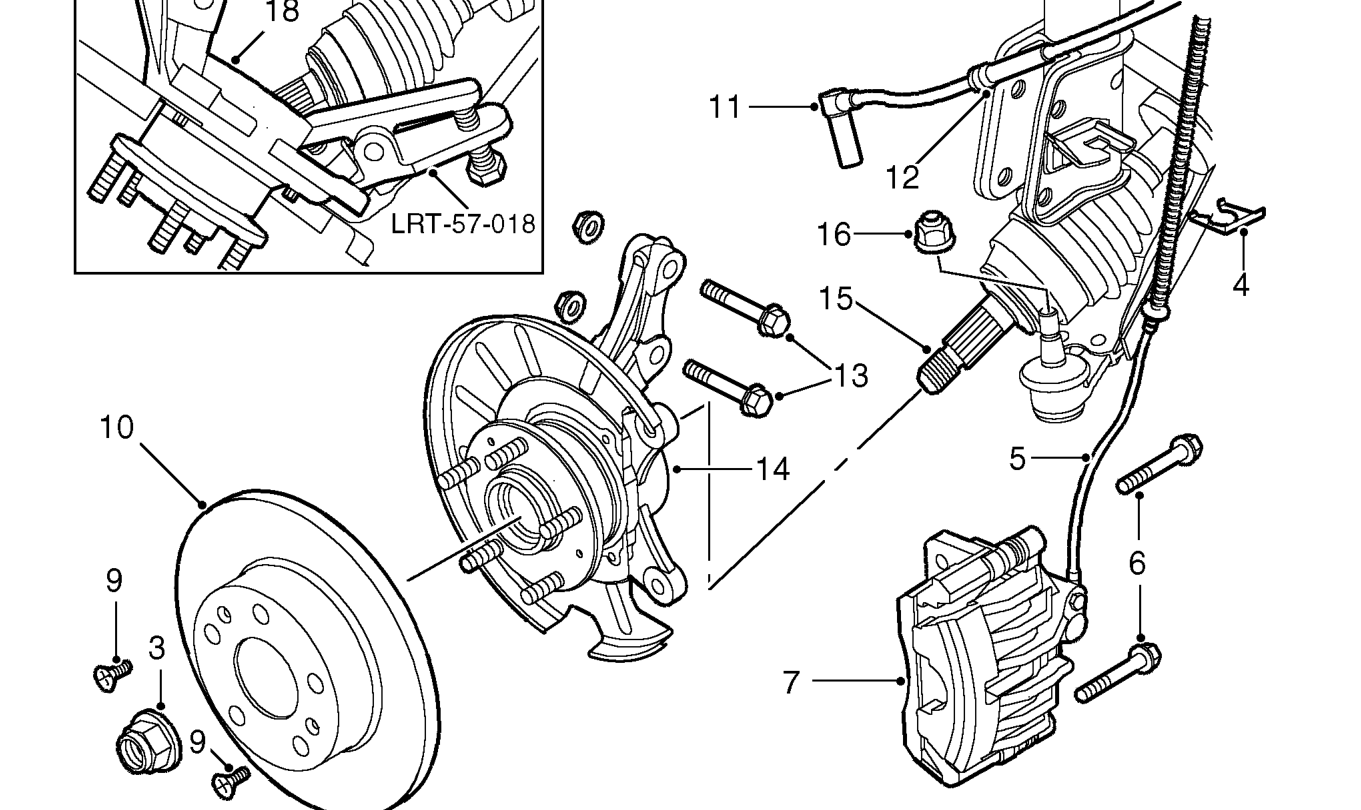

Bearing - hub - front – Remove road wheel(s).
  1. Remove drive shaft nut.
  2. Remove clip securing brake hose to bracket.
  3. Remove brake hose from bracket.
  4. Remove 2 bolts securing caliper.
  5. Remove caliper from hub and tie aside.

CAUTION: Do not allow caliper to hang on brake hose.

  1. Mark brake disc to hub relationship.
  2. Remove 2 screws from disc.
  3. Remove disc.
  4. Remove ABS sensor from hub.
  5. Remove ABS sensor lead from bracket.
  6. Remove 2 nuts and bolts securing swivel hub to suspension damper.
  7. Release hub from damper.
  8. Remove drive shaft from hub.
  9. Restrain hub from rotating and remove nut from lower swivel.
  10. Break taper joint using tool LRT-57-018.
  11. Remove swivel hub. Do not carry out further dismantling if component is removed for access only.
