Land Rover Freelander Workshop Manual (1998-2000)20 · Front suspension
20 · Steering & suspension

Bearing - hub - front (page 3 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Front suspensionBearing - hub - front · page 3 of 4
Diagram

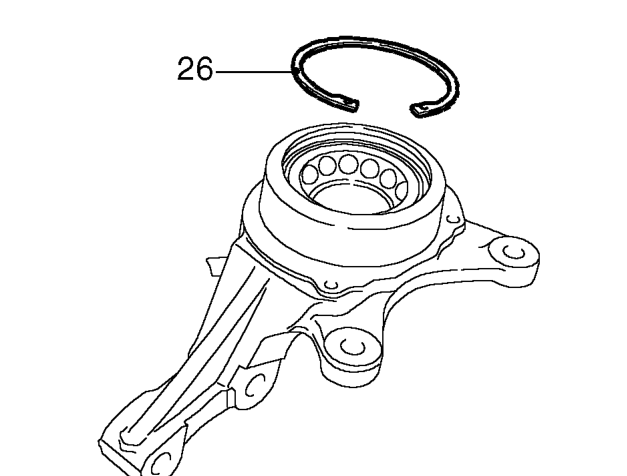

  1. Remove circlip retaining bearing.
Remove circlip retaining bearing.

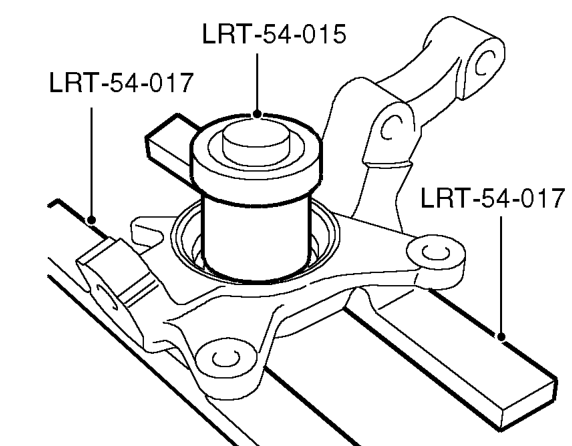

  1. Position hub to press and press out bearing using tools LRT-54-017 and LRT-54-015. discard bearing.

CAUTION: Never re-use existing bearing.

  1. Clean swivel hub assembly and drive flange.
Clean swivel hub assembly and drive flange.

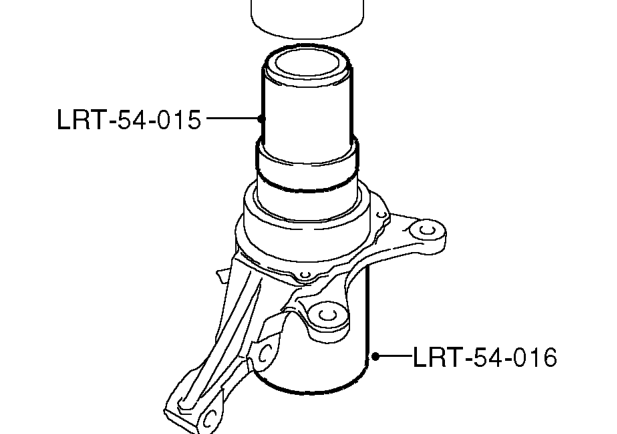

  1. Support hub on tool LRT-54-016 and press in new bearing using tool LRT-54-015.
  2. Fit circlip.
  3. Fit disc shield, fit bolts and tighten to 8.5 Nm.
Fit disc shield, fit bolts and tighten to 8.5 Nm.

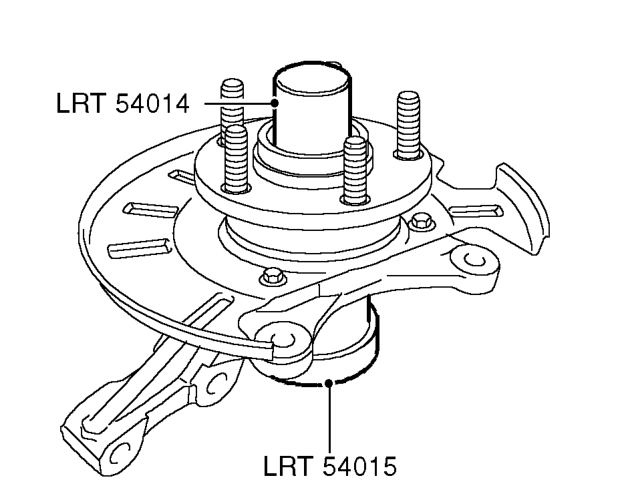

  1. Support hub on tool LRT-54-015 and press flange into bearing using tool LRT-54-014.
