Land Rover Freelander Workshop Manual (1998-2000)20 · Front suspension
20 · Steering & suspension

Bearing - hub - front (page 2 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Front suspensionBearing - hub - front · page 2 of 4
Diagram

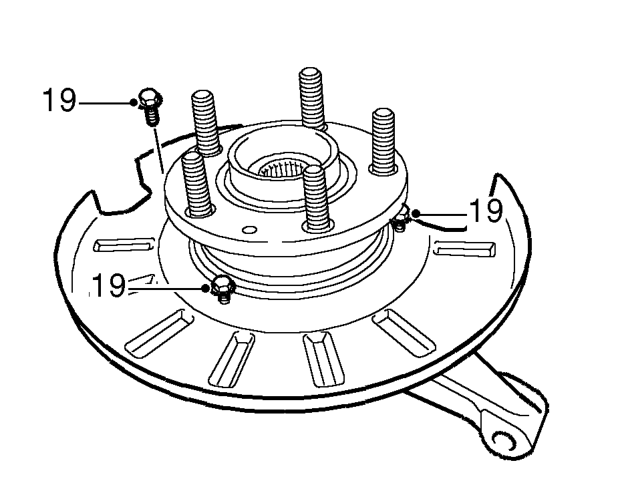

  1. Remove 3 screws securing brake disc shield.
Remove 3 screws securing brake disc shield.

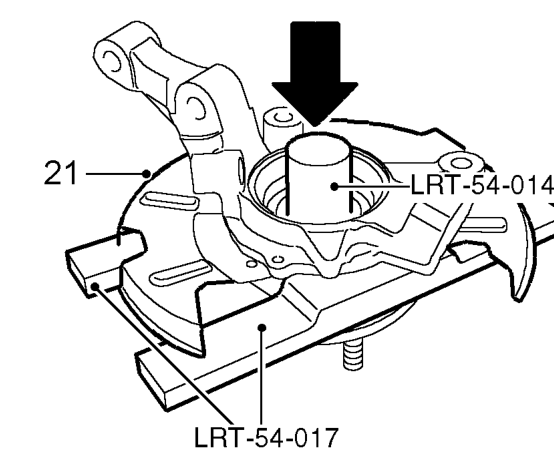

  1. Position swivel hub assembly to press, support on tools LRT-54-017 and press out drive flange using tool LRT-54-014.
  2. Remove brake disc shield.

NOTE: Outer bearing inner track will remain on drive flange.

Remove brake disc shield.

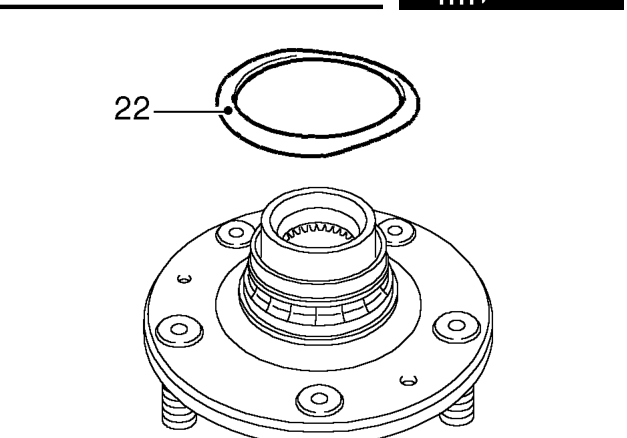

  1. Remove bearing sealing plate from inner track.
  2. Position drive flange in a vice.
Position drive flange in a vice.

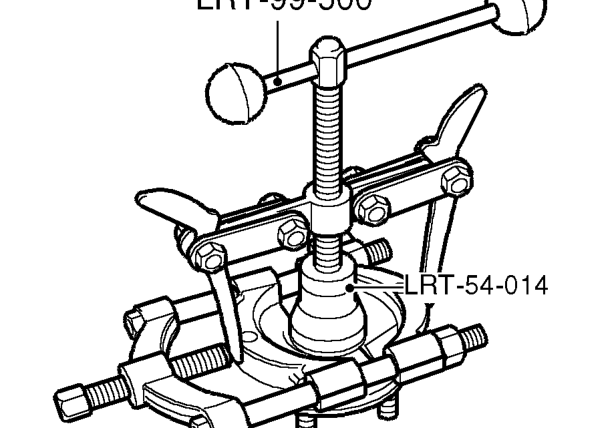

  1. Clamp both halves of bearing separator around bearing inner track ensuring that inner lip fits in groove on the inner track.
  2. Using tool LRT-99-500 and thrust pad LRT-54-014 withdraw inner track from drive flange.
