Front suspensionDamper - front · page 1 of 2

DAMPER - FRONT

Service repair no - 60.30.02 Damper - front Service repair no - 60.20.01 Spring - front

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

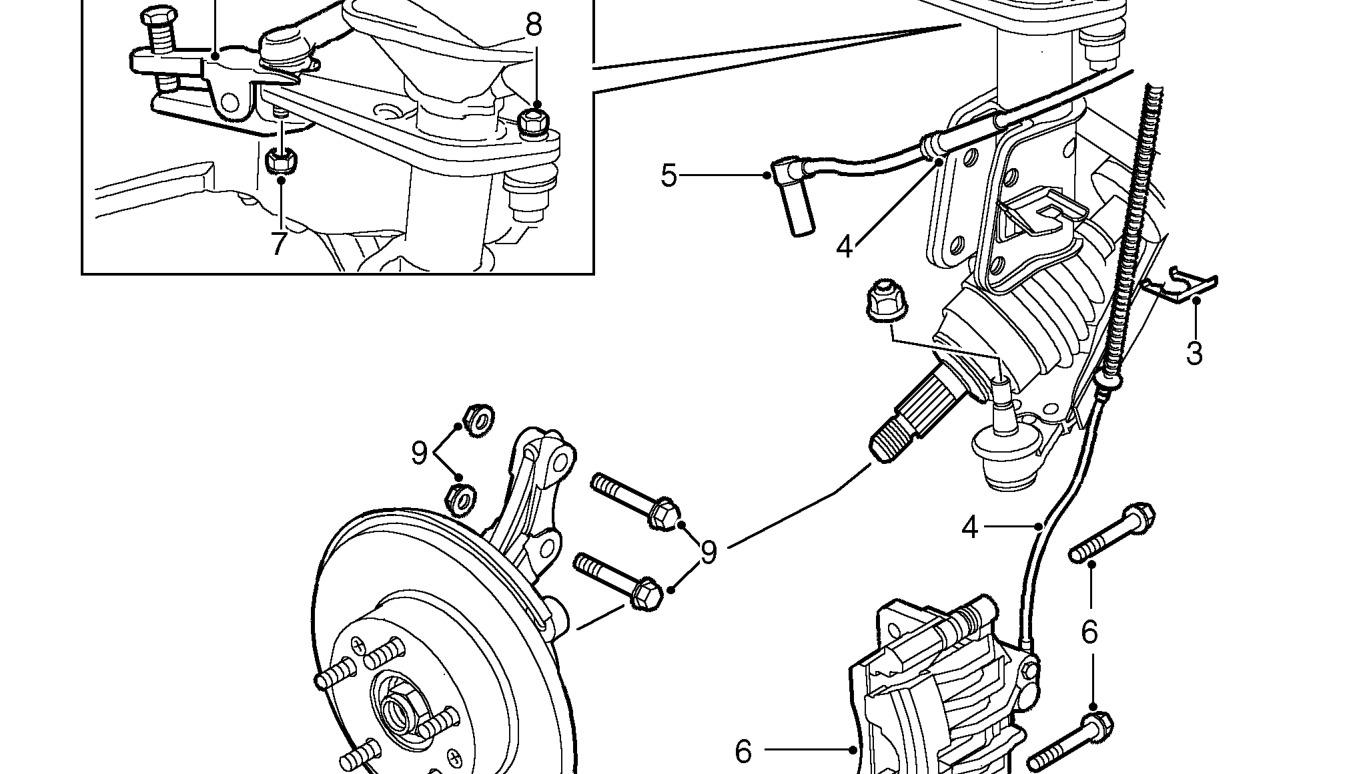

Damper - front – Remove road wheel(s).
  1. Remove ’C’ clip from brake hose.
  2. Release brake hose and ABS harness from bracket.
  3. Release ABS sensor from hub assembly.
  4. Remove 2 bolts securing brake caliper to hub, release caliper and tie aside.
  5. Remove nut from track rod end ball joint and use LRT-57-018 to break ball joint taper.
  6. Remove upper nut from anti-roll bar link, release link and position aside.

CAUTION: Use a spanner and an Allen key

to prevent ball joint rotating when undoing link.

  1. Remove 2 bolts securing damper to swivel hub, release damper from hub.
