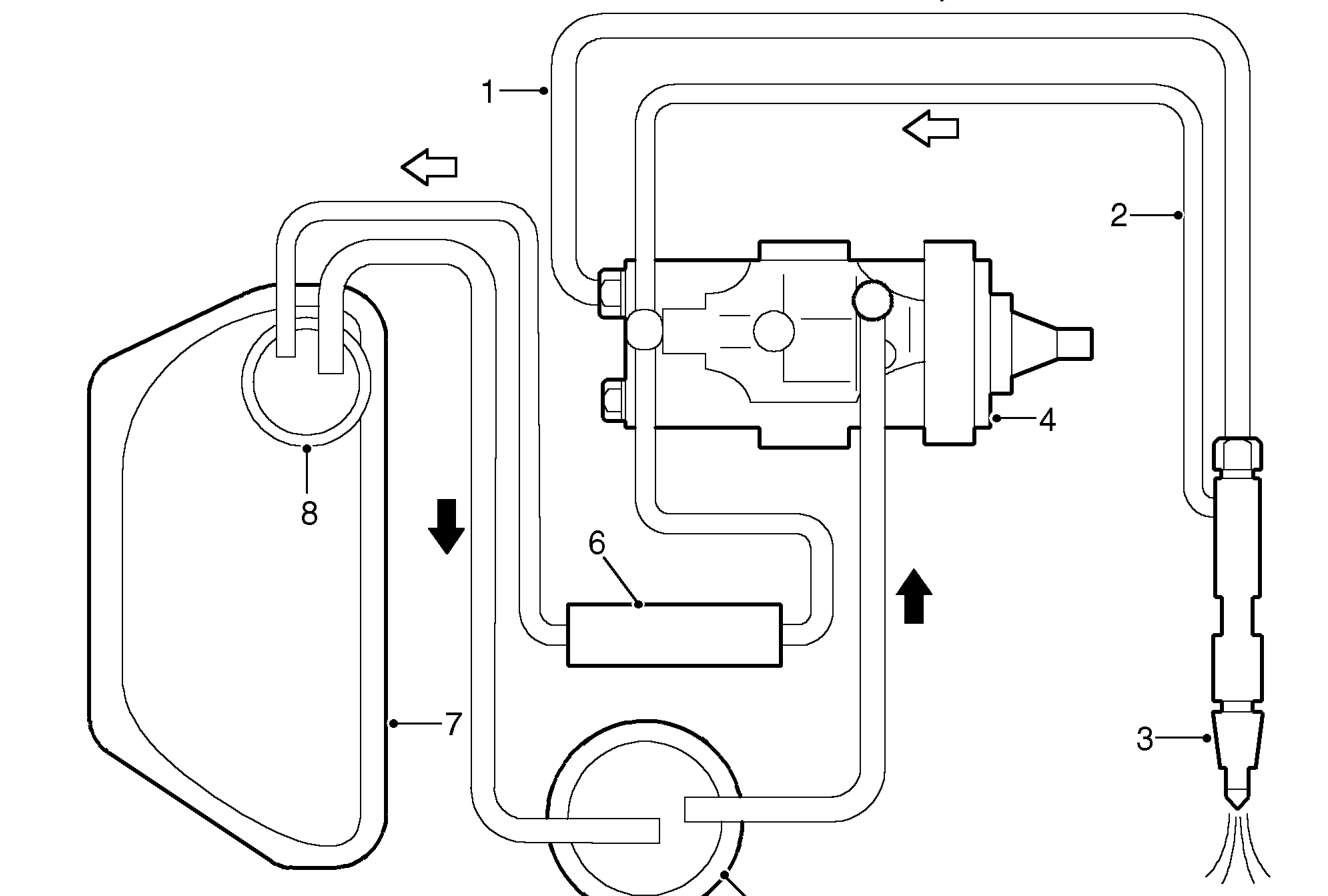

Fuel delivery system - ’l’ series

FUEL DELIVERY SYSTEM - ’L’ SERIES

1. Fuel feed line
2. Fuel return line
3. Injectors
4. Fuel injection pump

FUEL SYSTEM

The fuel delivery system major components comprise a fuel tank, a fuel injection pump, a fuel filter and four injectors.

Fuel Tank

The fuel tank is located on the underside of the vehicle, forward of the rear suspension subframe. The tank is constructed from moulded plastic and is retained by a tubular cradle which is bolted to the vehicle floorpan with four bolts. A reflective metallic covering shields the tank from heat generated from

5. Fuel filter
6. Fuel cooler
7. Fuel tank
8. Fuel pick-up and fuel gauge potentiometer

the exhaust system. The tank has a capacity of 60 litres (13.2 Gallons).

An aperture in the top surface of the tank allows for the fitment of the fuel pick-up and potentiometer. A notched ring retains the fuel pick-up and potentiometer in the tank and requires a special tool for removal and installation. The fuel pick-up incorporates a swirl pot which maintains a constant fuel level around the pick-up.
