Fuel delivery systemFuel Tank and Tank Breather

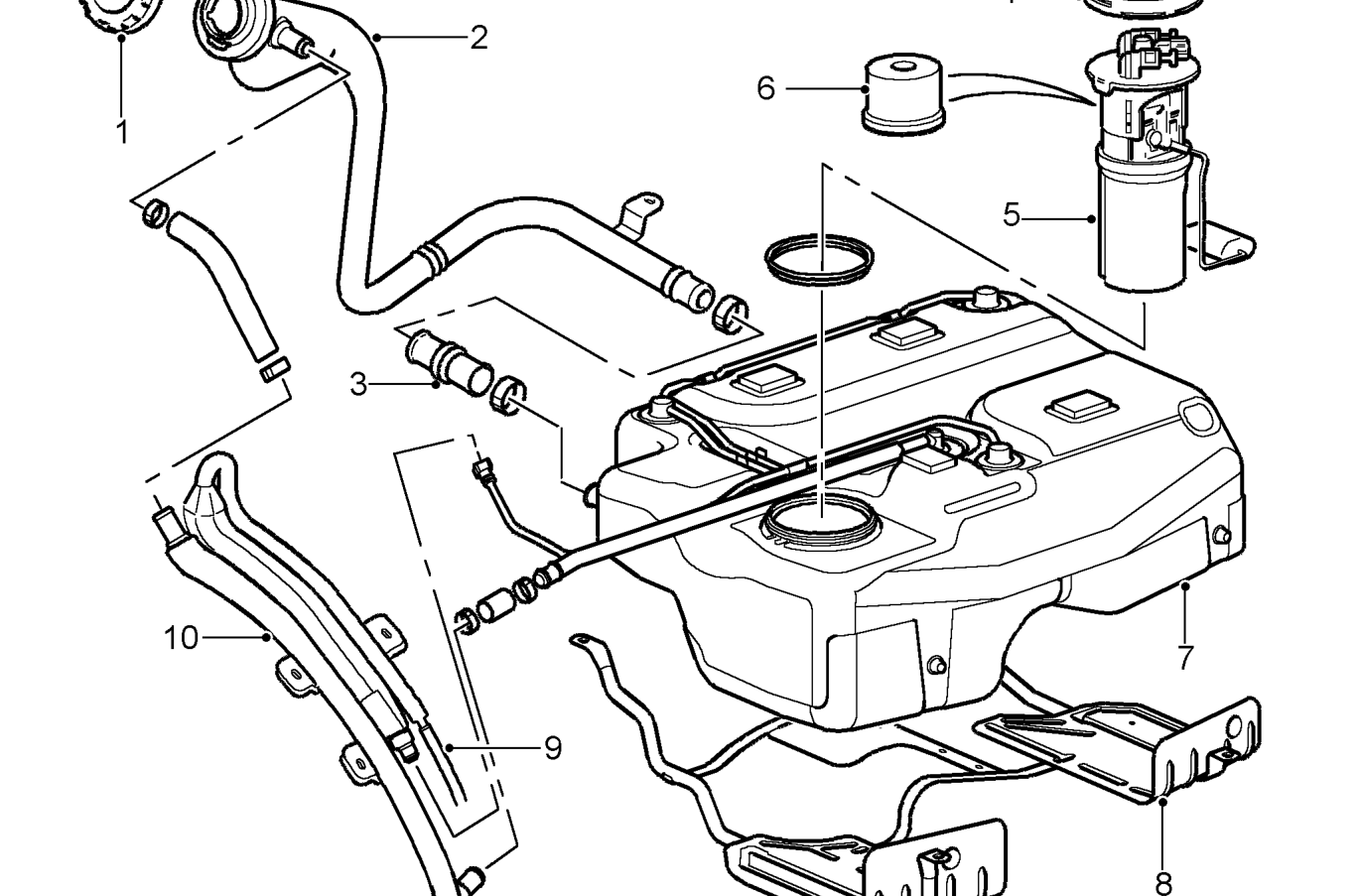

Diagram

Fuel Tank and Tank Breather

  1. Filler cap
  2. Filler tube
  3. Flexible tube
  4. Locking ring
  5. Fuel pump and fuel gauge potentiometer
  6. Fuel filter
  7. Fuel tank
  8. Cradle
  9. Vent to charcoal canister
  10. Vent pipe
