Land Rover Freelander Workshop Manual (1998-2000)10 · Fuel delivery system
10 · Engine

Fuel tank draining (page 2 of 2)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Fuel delivery systemFuel tank draining · page 2 of 2

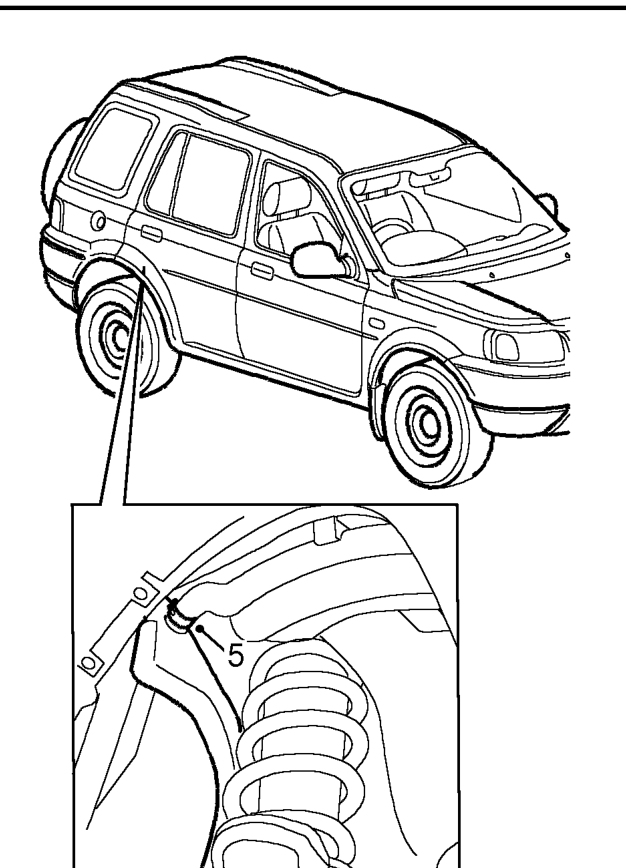

Diagram

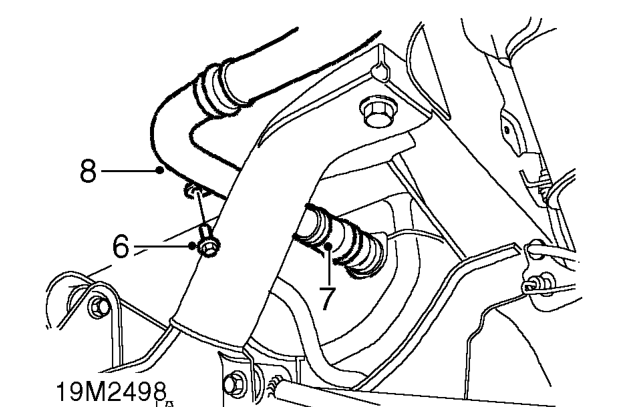

  1. Release clip from breather hose and disconnect breather hose from filler neck.
Release clip from breather hose and disconnect breather hose from filler neck.
  1. Remove bolt securing filler neck to body
  2. Release clip securing neck assembly to tank.
  3. Disconnect filler from tank.
  4. Remove filler neck assembly.

Refit

  1. Position filler neck, connect to tank, fit and secure clip.
  2. Fit tighten bolt securing filler neck to body and tighten to 9 Nm.
  3. Connect breather hose to filler neck, fit and secure clip.
  4. Position filler neck to fuel cap aperture and fit locking ring.
  5. Fit rear wheel arch liner. See BODY, Repairs.
  6. Replenish fuel if necessary.
  7. Fit filler cap.
  8. Connect battery earth lead.
