Pump - fuel - ’k’ series (page 2 of 2)

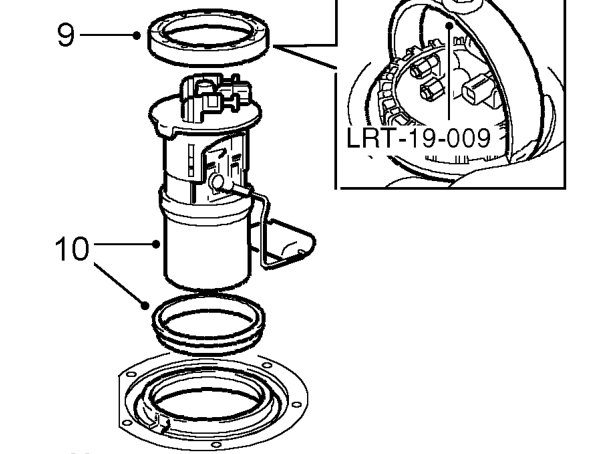

9. Use tool LRT 19-009 and remove locking ring from pump housing.
10. Remove pump housing and remove sealing ring.

Refit

1. Clean pump housing and mating face on fuel tank.
2. Fit sealing ring to tank aperture.
3. Fit pump housing and secure with locking ring. Tighten to 45 Nm using LRT 19-009.
4. Connect multiplug and fuel hose to pump housing.
5. Connect battery earth lead.
6. Run engine and check fuel hose connection for leaks.
7. Fit access panel and secure with screws.
8. Reposition carpets.
9. Raise rear seat.
10. Close rear and tail door.
11. Connect battery earth lead.
