Exhaust system -’k’ series (Manifold & exhaust systems)

Make

Land Rover

Model

Freelander Workshop Manual

Year

1998–2000

Section

Description and operation › Exhaust system -’k’ series

Manifold & exhaust systemsExhaust system -’k’ series

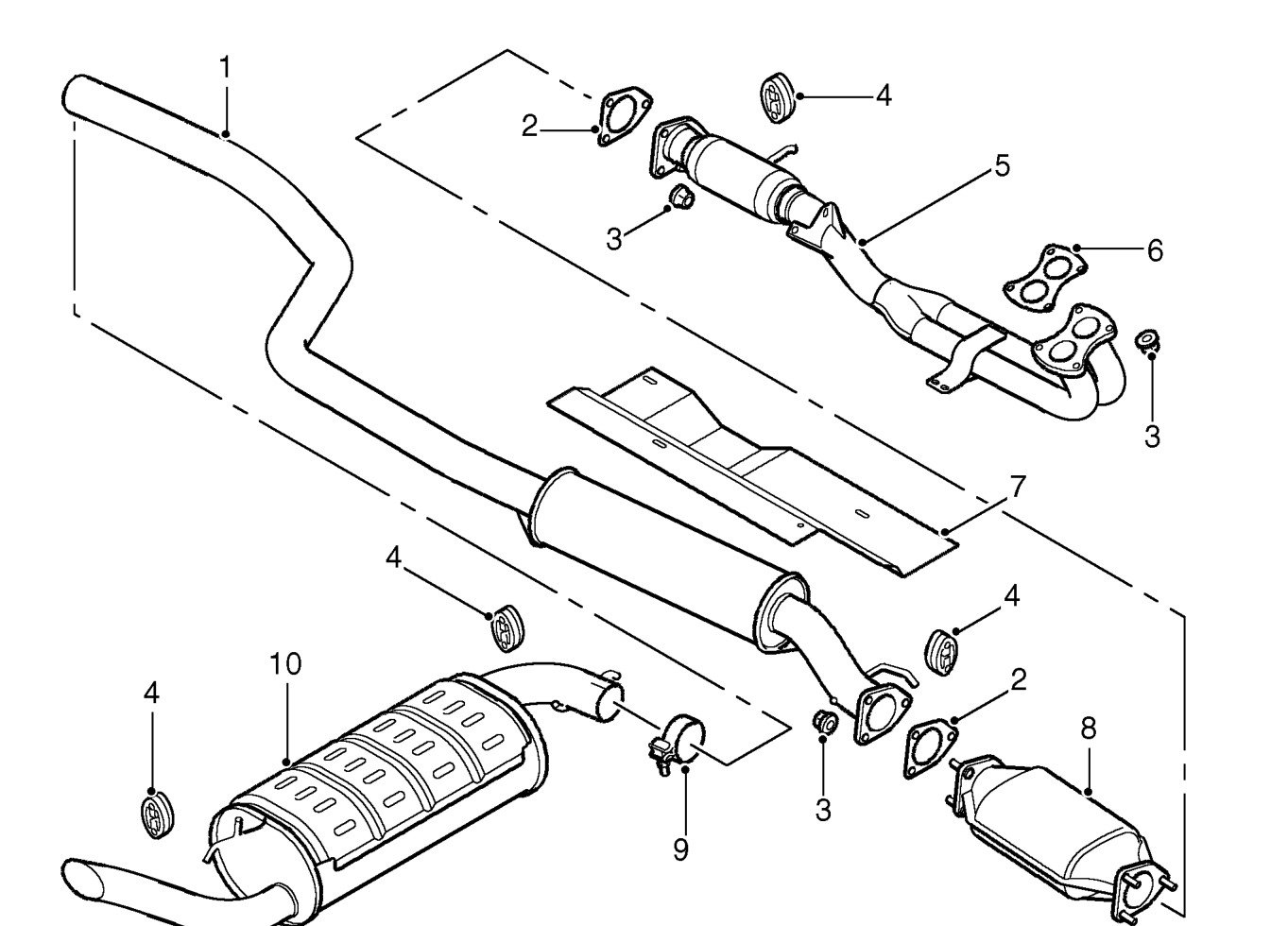

EXHAUST SYSTEM -’K’ SERIES

1. Intermediate pipe assembly
2. Gasket - 2 off
3. Nut - 10 off
4. Mounting rubber 4 off
5. Front pipe assembly
6. Gasket
7. Heat shield
8. Catalytic converter
9. Clamp
10. Tailpipe
