Inlet and exhaust manifold - ’l’ series (Manifold & exhaust systems)
- Make
- Land Rover
- Model
- Freelander Workshop Manual
- Year
- 1998–2000
- Section
- Description and operation › Inlet and exhaust manifold - ’l’ series
Manifold & exhaust systemsInlet and exhaust manifold - ’l’ series

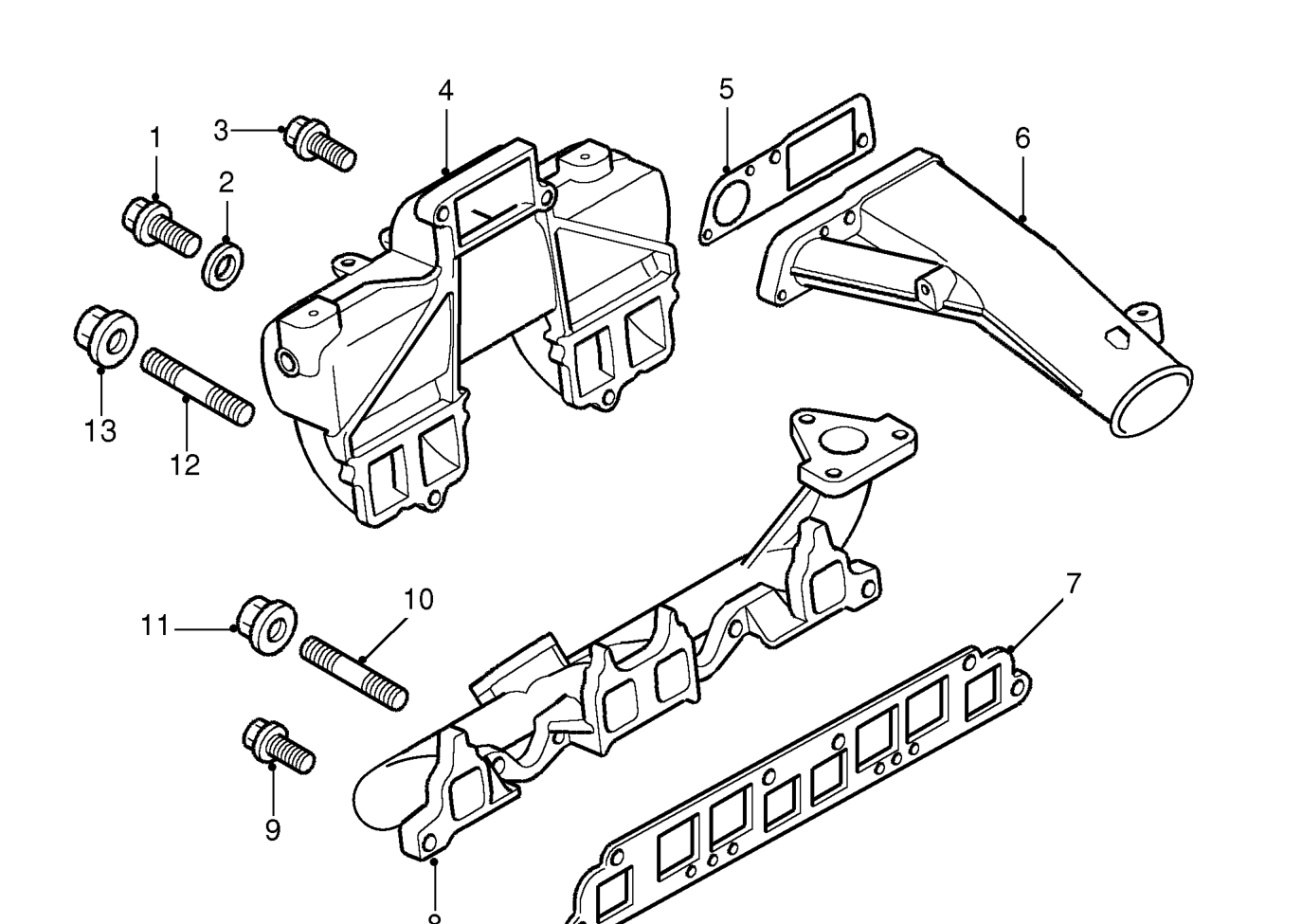

INLET AND EXHAUST MANIFOLD - ’L’ SERIES
- Bolt 4 off
- Spacer 4 off
- Bolt 2 off
- Inlet manifold
- Gasket, manifold to plenum chamber
- Plenum chamber
- Manifold gasket
- Exhaust manifold
- Bolt 2 off
- Stud 4 off
- Nut 4 off
- Stud 2 off
- Nut 2 off
