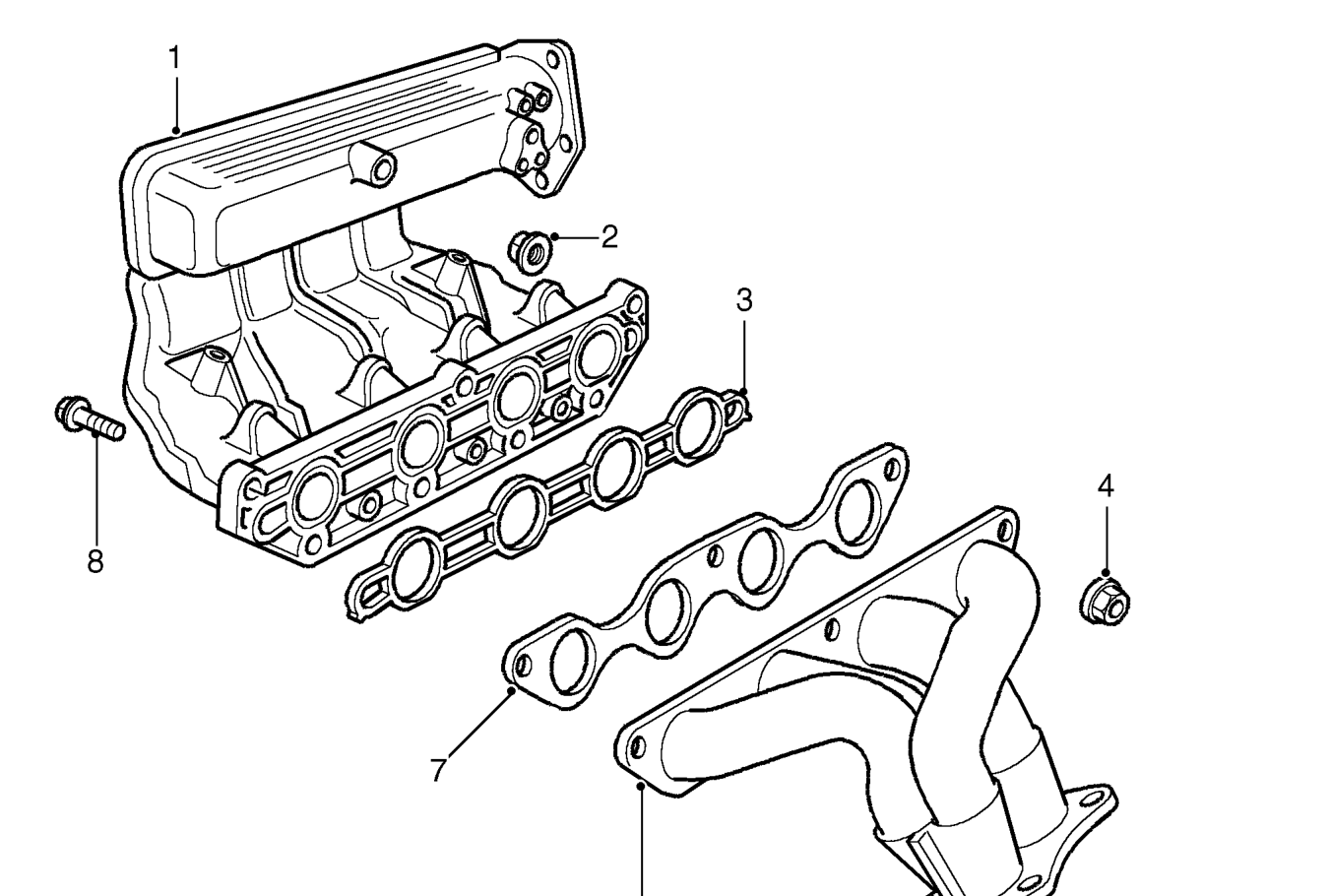

INLET AND EXHAUST MANIFOLD - ’K’ SERIES

1. Inlet manifold
2. Nut 4 off
3. Gasket, inlet manifold
4. Nut 5 off
5. Stud 4 off
6. Exhaust manifold
7. Gasket, exhaust manifold
8. Bolt 4 off
