Freelander Service Procedures
BRAKES
70-26
REPAIRS

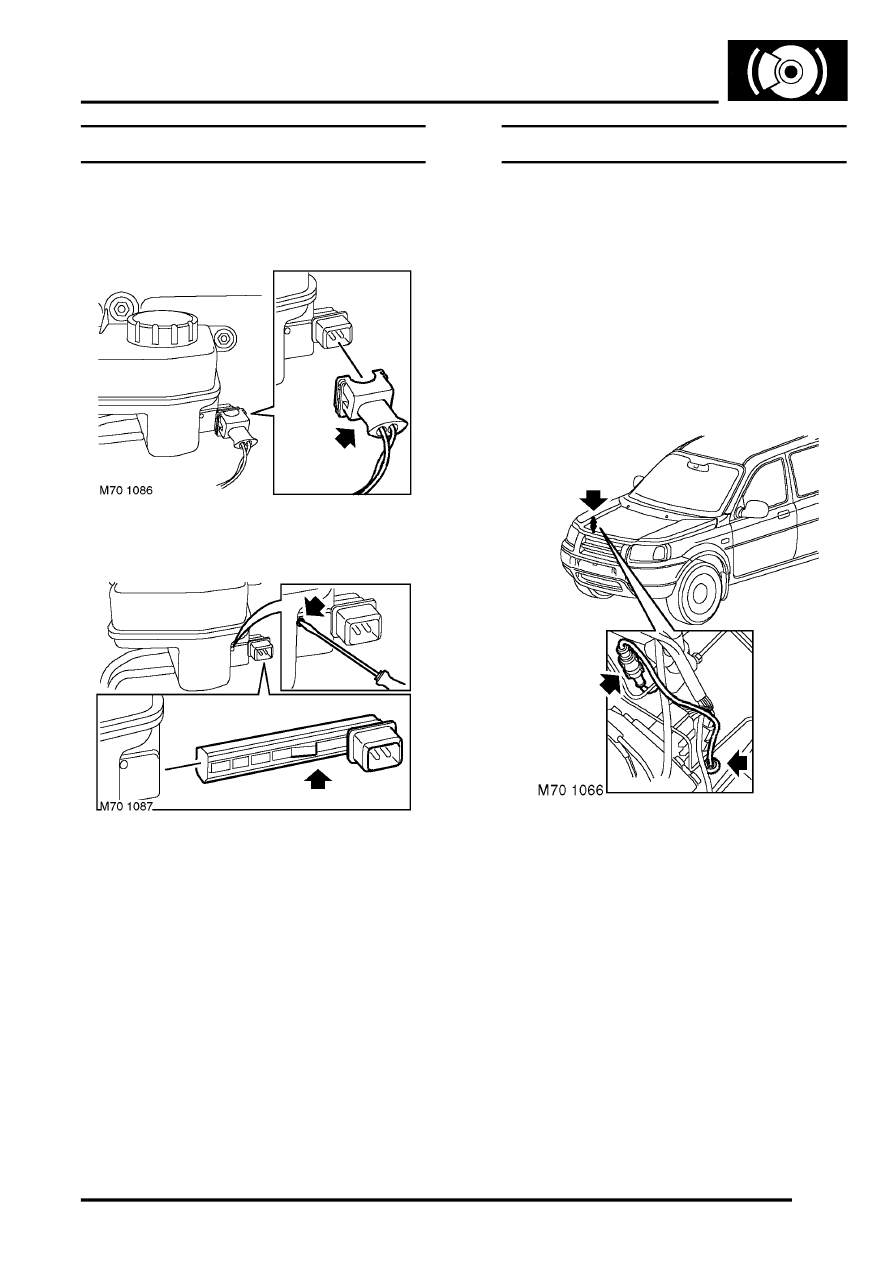

7. Release 2 grommets from wing valance and
damper brackets
8. Release harness from brake hose clips.
9. Remove bolt securing ABS sensor to hub, if
fitted.
10. Release ABS sensor from hub.
11. Remove ABS sensor and harness.
12. Remove bush from front hub.
Refit
1. Clean ABS sensors and mating faces.
2. Fit new bush to front hub.
3. Apply anti-seize grease to sensor.
4. Fit sensor to hub, ensure sensor is fully seated
in hub.
CAUTION: Ensure ABS sensor is fully
located into hub, so that sensor touches
pole wheel teeth.
5. Fit and tighten bolt securing ABS sensor to hub,
if fitted.
6. Secure harness grommets to brackets.
7. Pass sensor harness through wing valance and
secure grommet.
8. Ensure 'O' ring is in place and connect sensor
multiplug to body harness.
9. Secure multiplug in body clip.
10. Secure harness to brake hose clip.
11. Fit front wheel arch liner.
12. Fit road wheel(s) and tighten nuts to 115 Nm
(85 lbf.ft).
13. Remove stand and lower vehicle.
14. To ensure correct operation, the ABS system
MUST be tested using TestBook/T4.
