DRIVESHAFTS

REPAIRS

47-13

Propeller shaft - front /rear - overhaul

$% 47.15.11

Remove

1. Remove relevant propeller shaft.



 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft - front.

2. Examine universal joint for signs of wear or

damage.

3. Clean the universal joint bearing cups and

circlips.

CAUTION: Before removal, mark the
position of the spider pin relative to the
journal yoke ears on the propeller shaft
joint. This will ensure correct assembly and
reduce the possibility of imbalance.

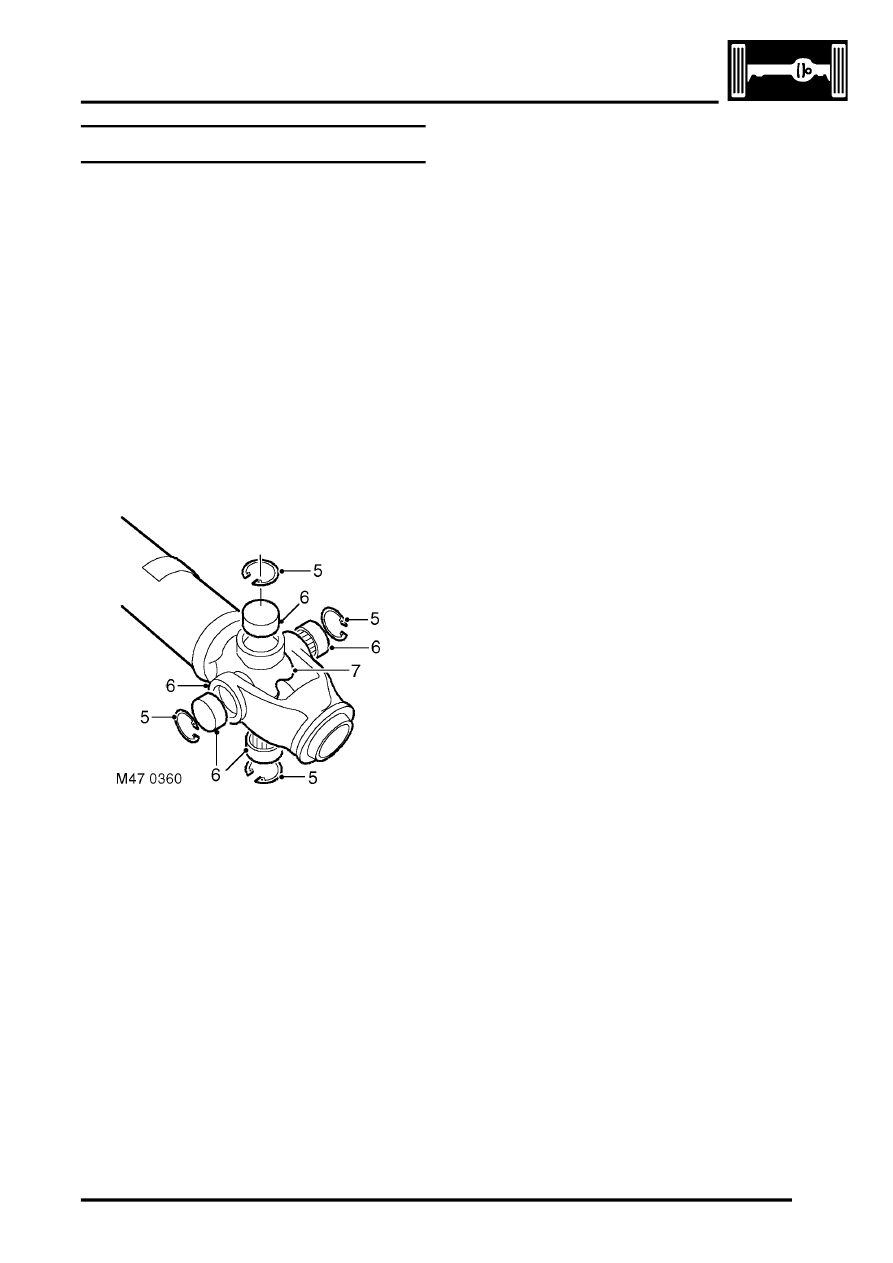

4. Remove the circlips.
5. Tap the yokes to eject bearing cups. Remove

bearing cups.

6. Remove spider from yokes.
7. Clean yokes and bearing cup locations.

Refit

1. Remove bearing cups from new spider.
2. Check all needle rollers are present and

correctly positioned in bearing cups.

3. Ensure bearing cups are one-third full of

lubricant.

4. Enter new spider, with seals, into one of the

yokes.

5. Partially insert one bearing cup into yoke and

enter spider trunnion into bearing cup.

6. Insert opposite bearing cup in yoke.
7. Press both cups into place.
8. Press each cup into its respective location in

yoke up to lower land of circlip groove.

CAUTION: Damage may be caused to cups
and seals if cups pass this point.

9. Fit circlips and check no end float exists.

10. Engage spider in second yoke. Fit bearing cups

and circlips as described in steps 4 to 8.

11. Fit propeller shaft.



 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft - front.
