FRONT SUSPENSION
60-8
REPAIRS

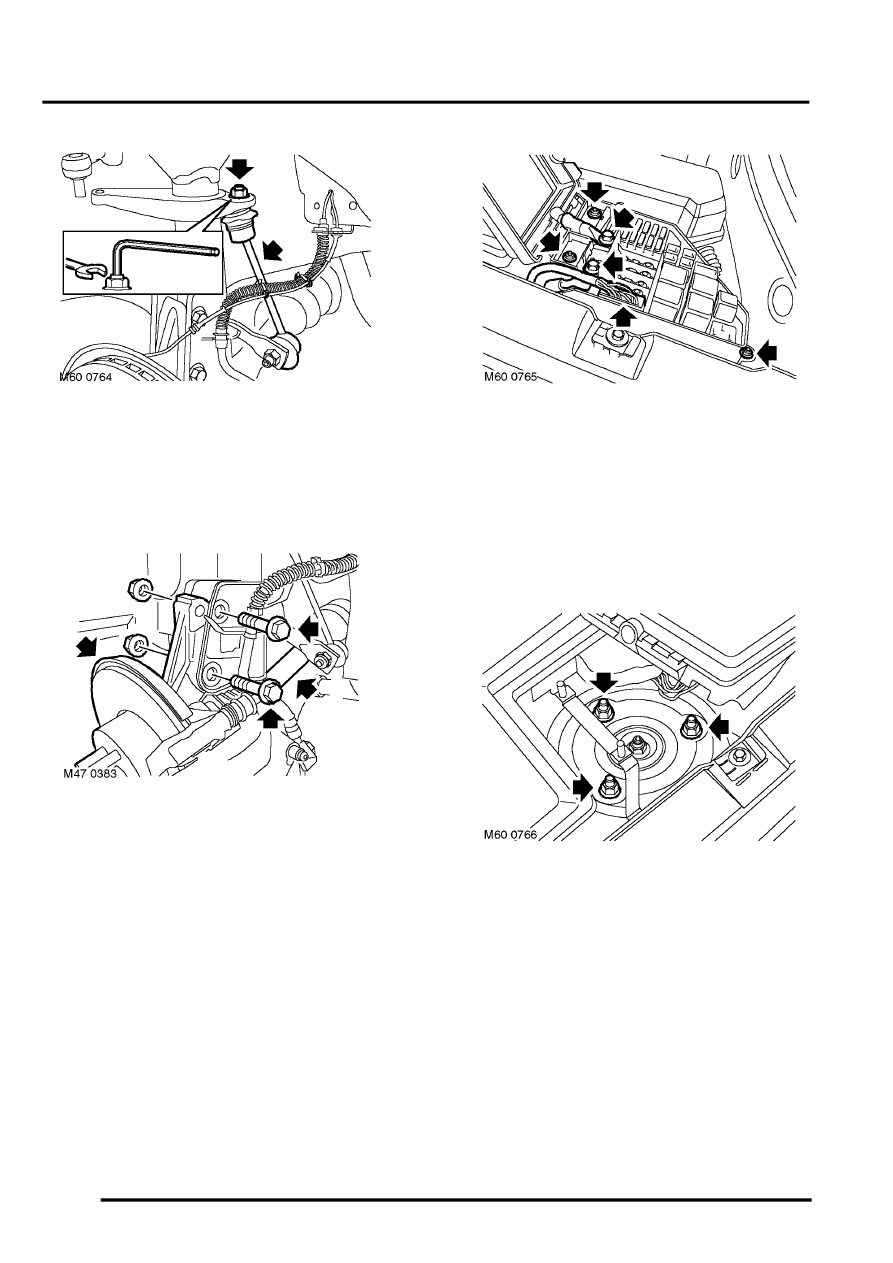

9. Remove upper nut from anti-roll bar link,
release link and position aside.
CAUTION: Use a spanner and an Allen key
to prevent ball joint rotating when undoing
link.
10. Remove 2 nuts and bolts securing hub to
damper.
11. Release damper from hub.
12. LH side: Remove 2 bolts securing positive and
negative leads to fusebox.
13. LH side: Disconnect multiplug from engine
compartment fuse box.
14. LH side: Release leads and position aside.
15. LH side: Remove 3 nuts securing fusebox and
position fusebox aside.
16. RH side: Remove bolt securing coolant
reservoir and position reservoir aside.
17. Reference mark top mounting in relationship to
body.
18. Remove 3 nuts from damper top mounting and
remove spring and damper assembly.
