Freelander Service Procedures
FRONT SUSPENSION
REPAIRS
60-9

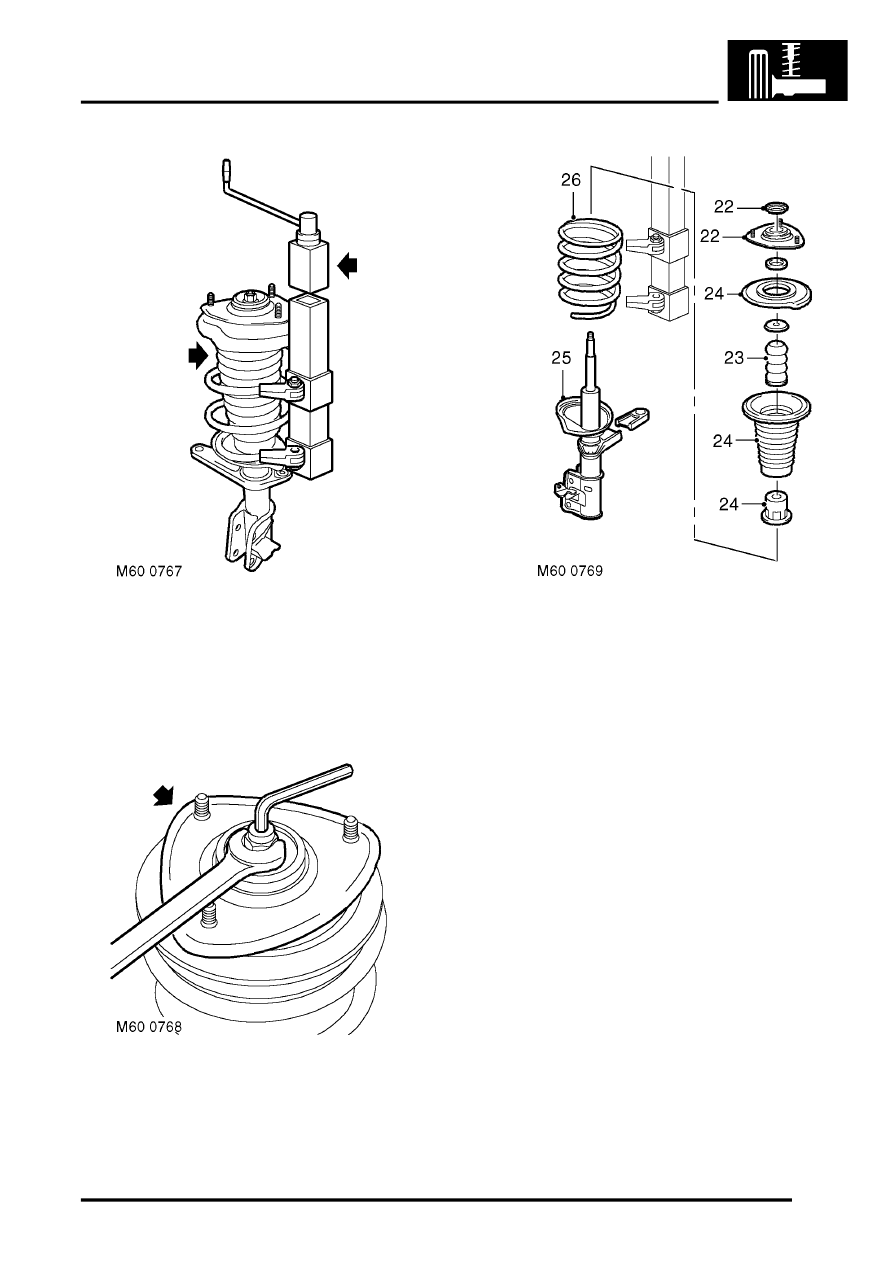

19. Position a suitable spring compressor in vice.
20. Position spring and damper assembly to spring
compressor. Compress spring.
CAUTION: Note alignment of top mounting,
spring and damper dust cover.
21. Compress spring by 2 to 3 cm until loose, hold
damper shaft with Allen key, remove and
discard mounting plate nut.
22. Remove rebound washer and mounting plate.
23. Remove spring aid and bump plate.
24. Remove spring seat, dust cover and bump stop
cup.
25. Remove damper from spring.
26. Release and remove spring from compressor.
