Freelander Service Procedures
FUEL DELIVERY SYSTEM - PETROL
19-2-4
ADJUSTMENTS
Fuel system - depressurise - K1.8
$% 19.50.02
Check
1. Position absorbent cloth around fuel feed pipe
connection to collect spillage.
WARNING: The spilling of fuel is
unavoidable during this operation. Ensure
that all necessary precautions are taken to
prevent fire and explosion.
2. Disconnect fuel feed hose from fuel rail.
3. Connect feed hose to fuel rail once pressure
has relieved.
Fuel system - pressure test - KV6 - Non
NAS
$% 19.50.13
Check
1. Remove engine acoustic cover.
ENGINE - K SERIES KV6, REPAIRS,
2. Position absorbent cloth around fuel feed pipe
connection to collect spillage.
WARNING: Fuel vapour is highly flammable
and in confined spaces is also explosive
and toxic. Always have a fire extinguisher
containing foam, CO
2
, gas or powder close
at hand when handling or draining fuel.
3. Disconnect fuel inlet hose from fuel rail pipe.
4. Connect adaptor LRT-19-013, to pressure
gauge LRT-19-004 .

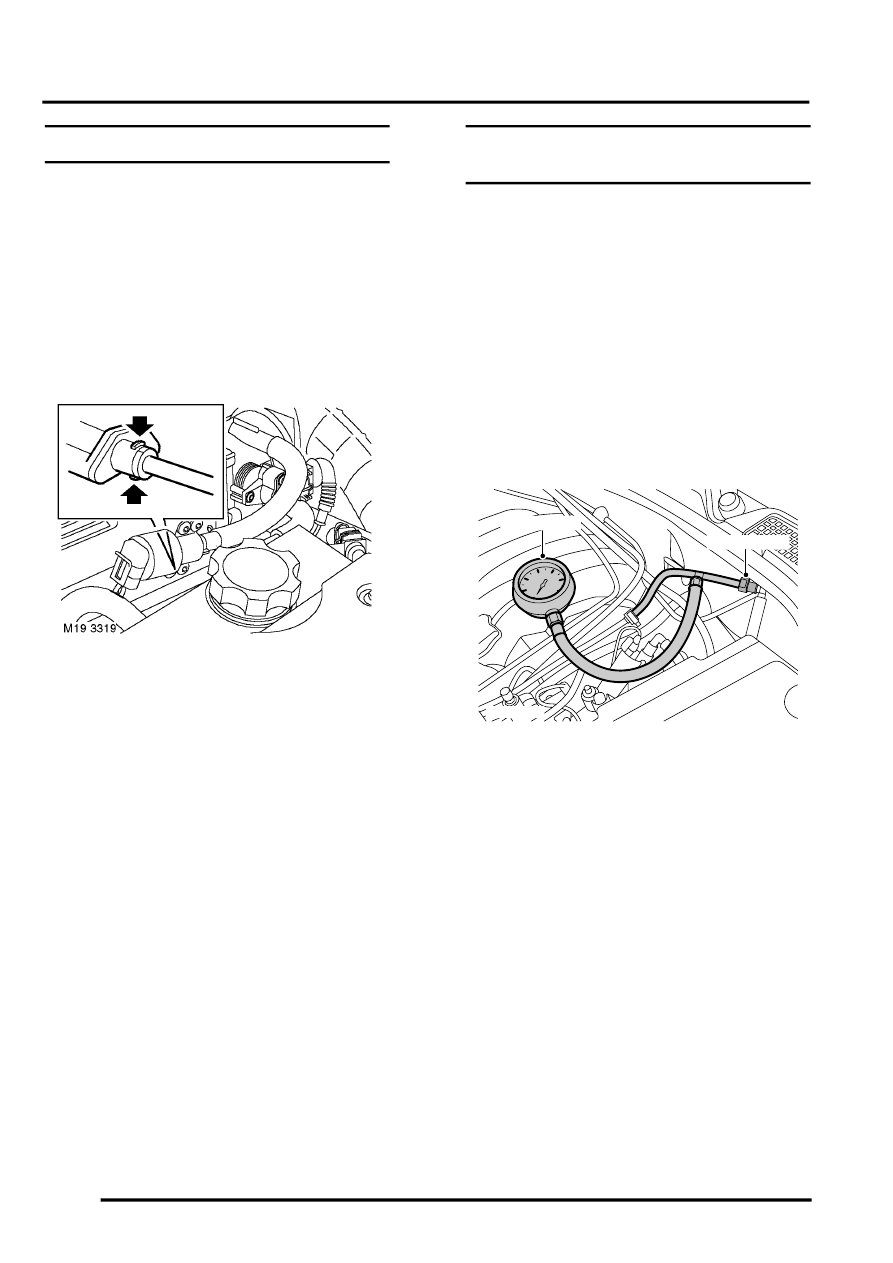

5. Position pressure gauge LRT-19-004, connect
to fuel inlet hose and to fuel rail pipe, securing
pressure gauge hose to fuel rail pipe with clip.
6. Start engine. Pressure at idle = 3.4 bar. If
pressure below 3.4 bar suspect the following in
order: fuel hoses, filter, regulator and pump.
7. Stop engine.
8. Release clip and disconnect LRT-19-004
pressure gauge from fuel inlet hose and fuel rail
pipe.
9. Disconnect adaptor LRT-19-013 from LRT-19-
004 pressure gauge.
10. Connect fuel inlet hose to fuel rail pipe.
11. Fit engine acoustic cover.
ENGINE - K SERIES KV6, REPAIRS,
M19 3247A
LRT-19 - 013
LRT -19- 004
