Freelander Service Procedures
FUEL DELIVERY SYSTEM - PETROL
19-2-20 REPAIRS

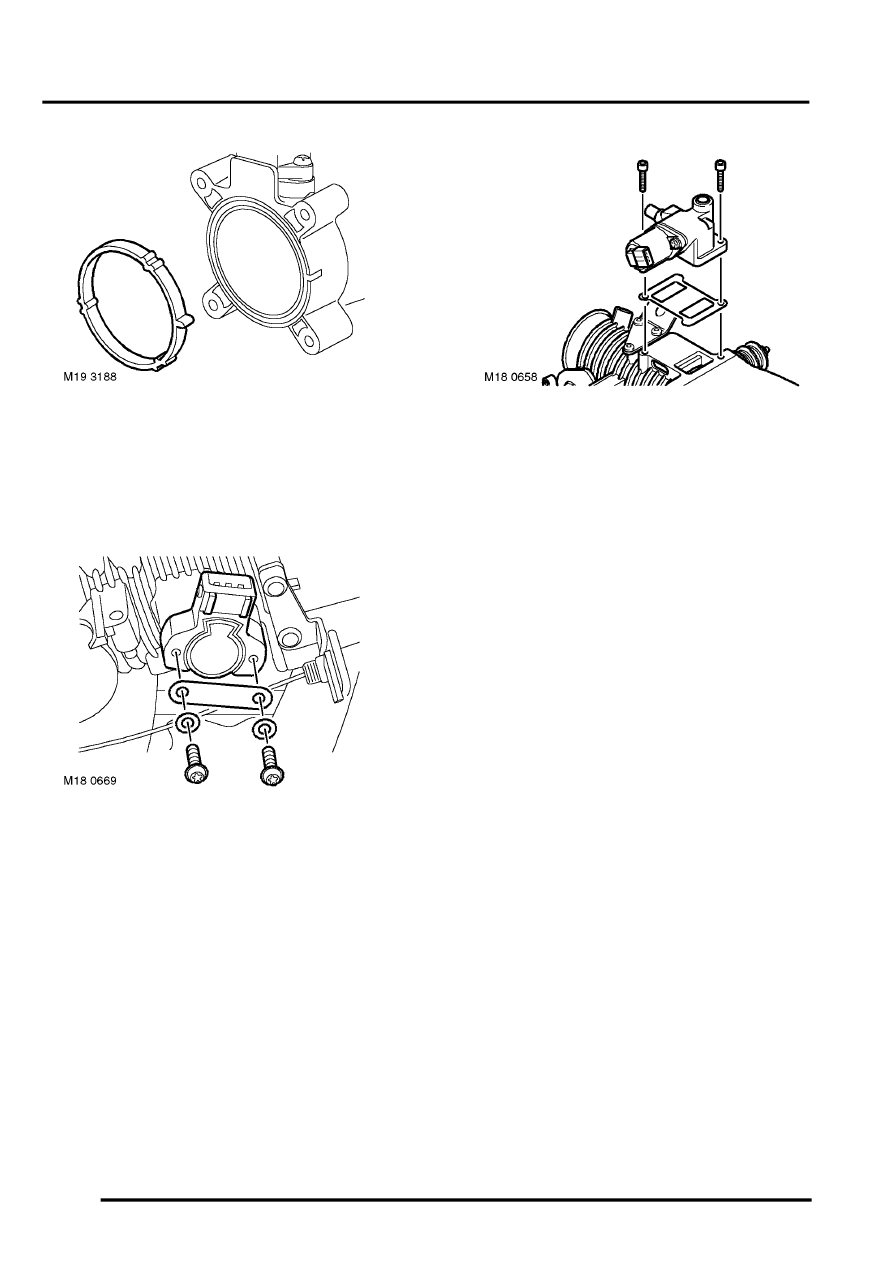

8. Remove and discard throttle body seal from
inlet manifold chamber.
9. Vehicles with cruise control: Disconnect
actuator arm from throttle linkage, remove 3
Torx screws securing actuator support bracket
to throttle body and remove actuator assembly.
10. Remove and discard 2 Torx screws and wave
washers securing primary TP sensor to throttle
body. Remove primary TP sensor and
specification plate.
CAUTION: Do not twist or apply leverage to
throttle position sensor.
11. Remove 2 Allen screws securing IACV to
throttle body, remove IACV and discard gasket.
