Freelander Service Procedures
REAR SUSPENSION
64-6
REPAIRS
9. Remove 2 nuts and bolts securing hub to
damper.
10. Release damper from hub.
11. Remove rear quarter lower casing.
REPAIRS, Trim casing - rear quarter - lower
- 3 door.
REPAIRS, Trim casing - rear quarter - lower
- 5 door.

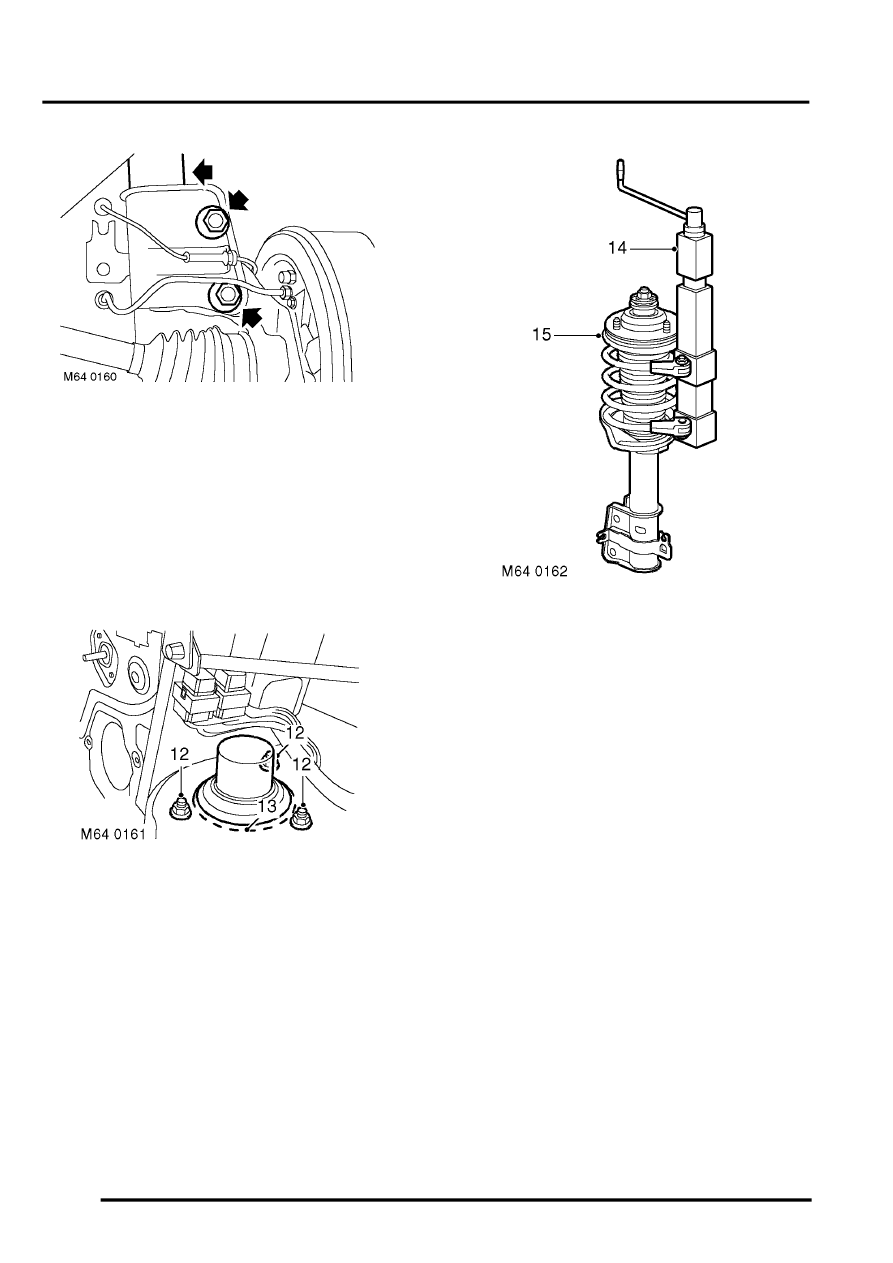

12. Remove 3 nuts from damper top mounting and
remove spring and damper assembly.
13. Remove rubber seal from top mounting.
14. Position a suitable spring compressor in vice.
CAUTION: Note alignment of top mounting,
spring and damper dust cover.
15. Position spring and damper assembly to spring
compressor. Compress spring.
16. Reference mark between top mounting and
spring.
