Freelander Service Procedures
RESTRAINT SYSTEMS
75-12
REPAIRS
6. Release rear of cushion cover from frame.
7. Release sides and front of cushion cover from
frame.
8. Release cover and pad from frame.
9. Remove Torx bolt from seat belt buckle and
remove buckle.
Refit

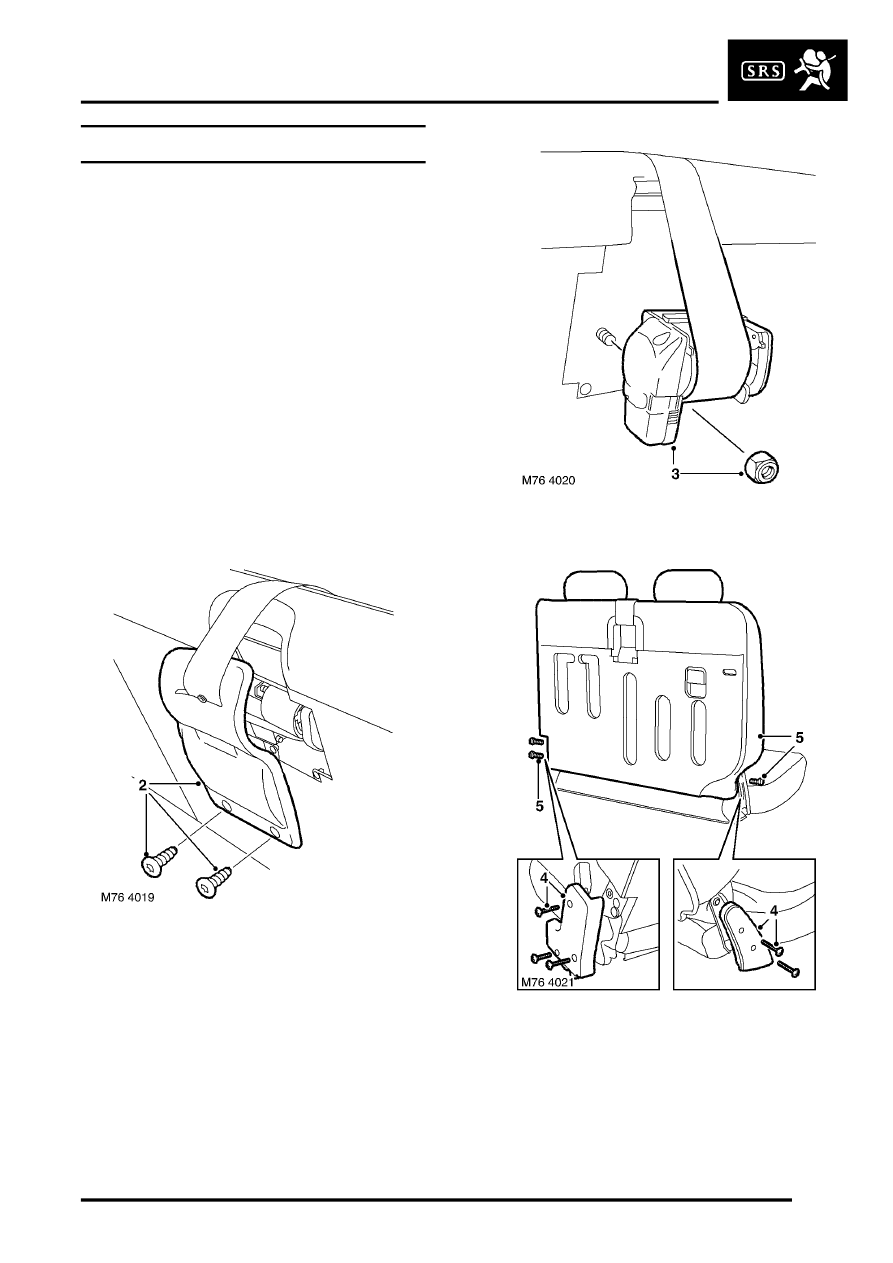

1. Position seat belt and buckle to frame and
tighten to 32 Nm (24 lbf.ft).
2. Fit cover and pad to frame.
3. Fit front and sides of cushion cover to frame.
4. Fit rear of cushion cover to frame.
5. Fit cushion to squab and tighten Torx bolts.
6. Fit end covers and tighten screws.
7. Position seat belt reel in seat squab and tighten
nut to 32 Nm (24 lbf.ft).
8. Fit seat belt reel cover and tighten screws.
9. Fit rear seat.
