Freelander Service Procedures
SUNROOF
REPAIRS
76-6-7
Drive cables & slide assemblies - sun/
sliding roof - front - 5 door
$% 76.84.09
Remove
1. Remove glass panel.
SUNROOF, REPAIRS, Glass panel -
sun/sliding roof - front - 5 door.
2. Open sun roof.
3. Release and remove wind deflector.
4. Position sun roof in tilt mode.
If sun roof motor is inoperative, use a tool to
manually tilt sun roof.
5. Remove sun roof motor.
SUNROOF, REPAIRS, Motor - sun/
sliding roof - front - 5 door.

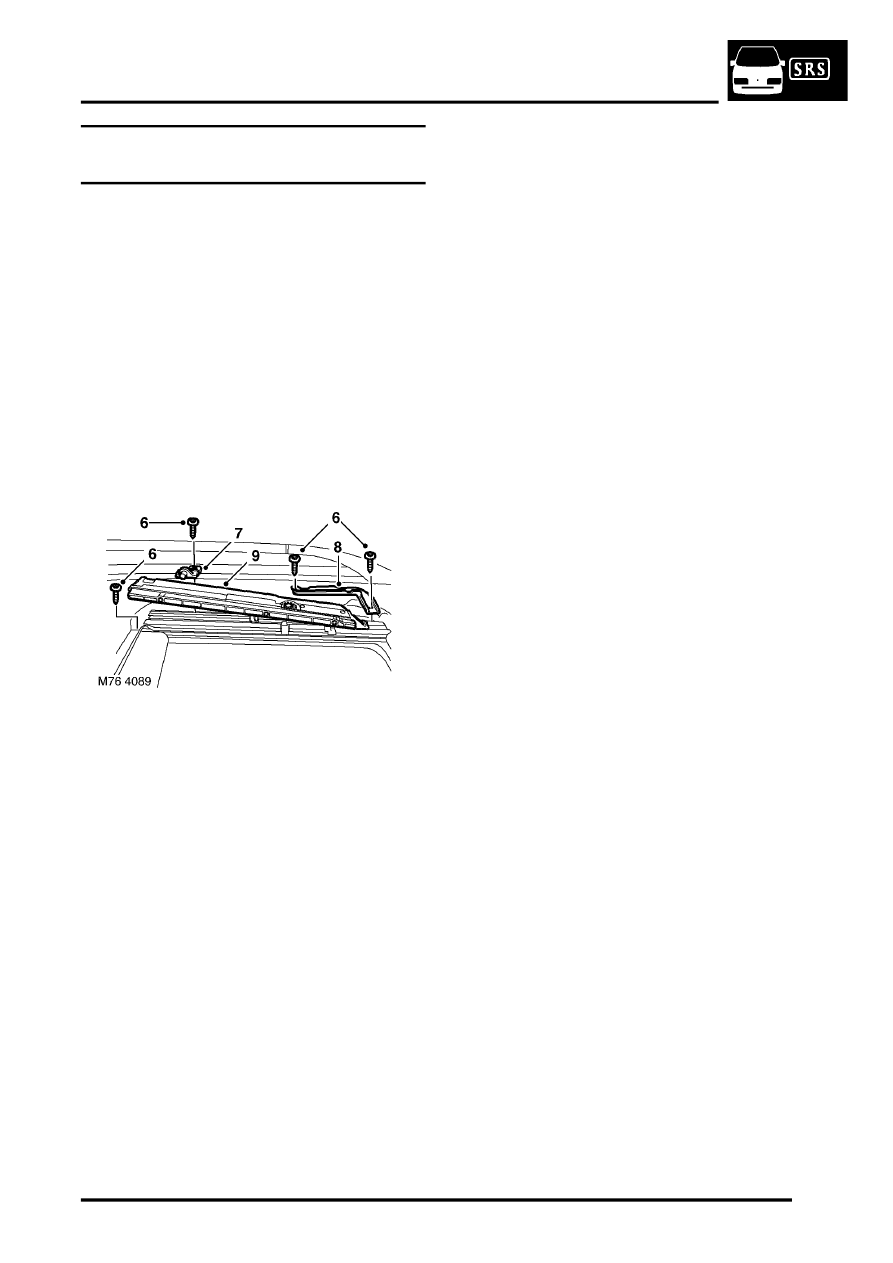

6. Remove 4 Torx screws securing lifting
assembly to roof.
7. Collect rear cam guide.
8. Slide assembly forward, remove cable guide
clamp.
9. Remove lifting assembly and cable.
Refit
1. Ensure cable tubes are in position, lightly
grease the end of cable tube.
2. Engage cable in tube and fit lifting assembly to
roof.
3. Fit cable guide clamp, place lifting assembly in
tilt mode.
4. Fit rear cam guide.
5. Fit and tighten Torx screws securing lifting
assembly to roof.
6. Fit sun roof motor.
SUNROOF, REPAIRS, Motor - sun/
sliding roof - front - 5 door.
7. Open sun roof.
8. Position wind deflector and secure to sun roof.
9. Fit glass panel.
