Rotary Coupler (page 2 of 2)

NOTE: It is imperative that the appropriate publication is read thoroughly prior to any work being undertaken on the SRS system.

NOTE: Exact positions of SRS warning labels may vary dependent on legislation and market trends. Refer to the Owner’s Handbook for additional information regarding the SRS system.

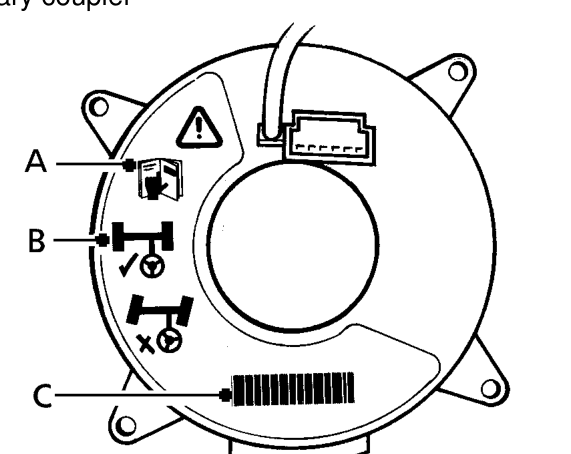

Rotary coupler

A - Refer to the Workshop Manual for detailed instructions. B - Ensure wheels are in the straight ahead position before removal and refitting. C - LAND ROVER Part Number/Bar code - The code must be recorded and quoted for ordering purposes.

End of Fascia

Label warning the owner not to use rear facing child seats in the front passenger seat in vehicles fitted with a passenger side airbag.
