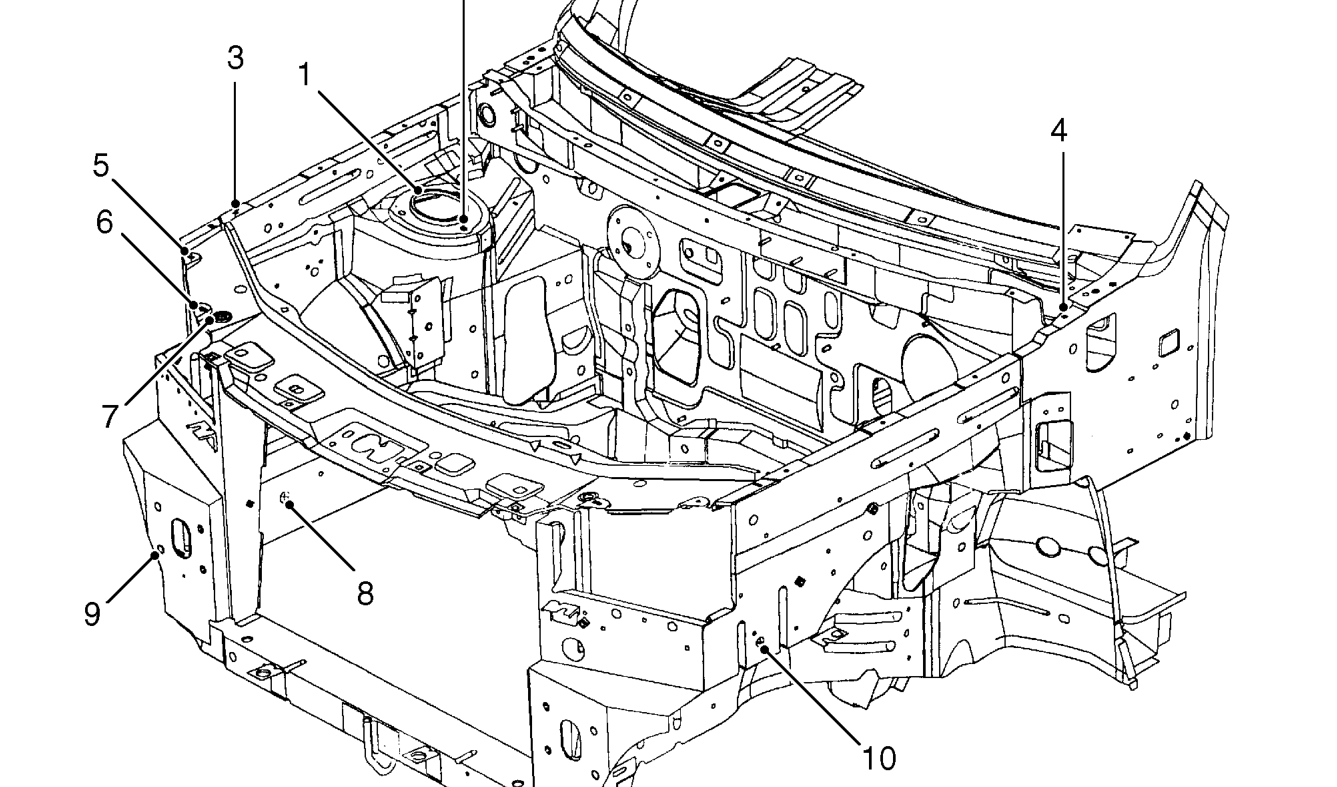

Front end dimensional information (see above Figure)

Make

Land Rover

Model

Freelander Body Repair Manual

Year

1998 on

Section

Body dimensions › Front end dimensional information (see above Figure)

InformationFront end dimensional information (see above Figure) · page 1 of 5

Front end dimensional information (see above Figure)

No.	Description	X	Y	Z
1	Front damper large hole	997	578.5	718.5
2	Front damper, inboard fixing hole	975.4	514.9	693.7
3	Front wing fixing	605	669	806
4	Rear wing fixing, dash side	1220	690	848.2
5	Outboard headlamp fixing hole	465	615	788.3
6	Inboard headlamp fixing hole	377	485	772
7	Bonnet locking platform, jig location hole	390	445	765
8	Sidemember jig location hole	500	446	388
9	Headlamp mounting panel, jig location hole	304	536	335
10	Front valance jig location hole	540	671.7	525
