GAPS AND PROFILES
The following information is to be used as a guide to assist the technician in refitting exterior body panels and trim items so as to achieve a correctly aligned vehicle.

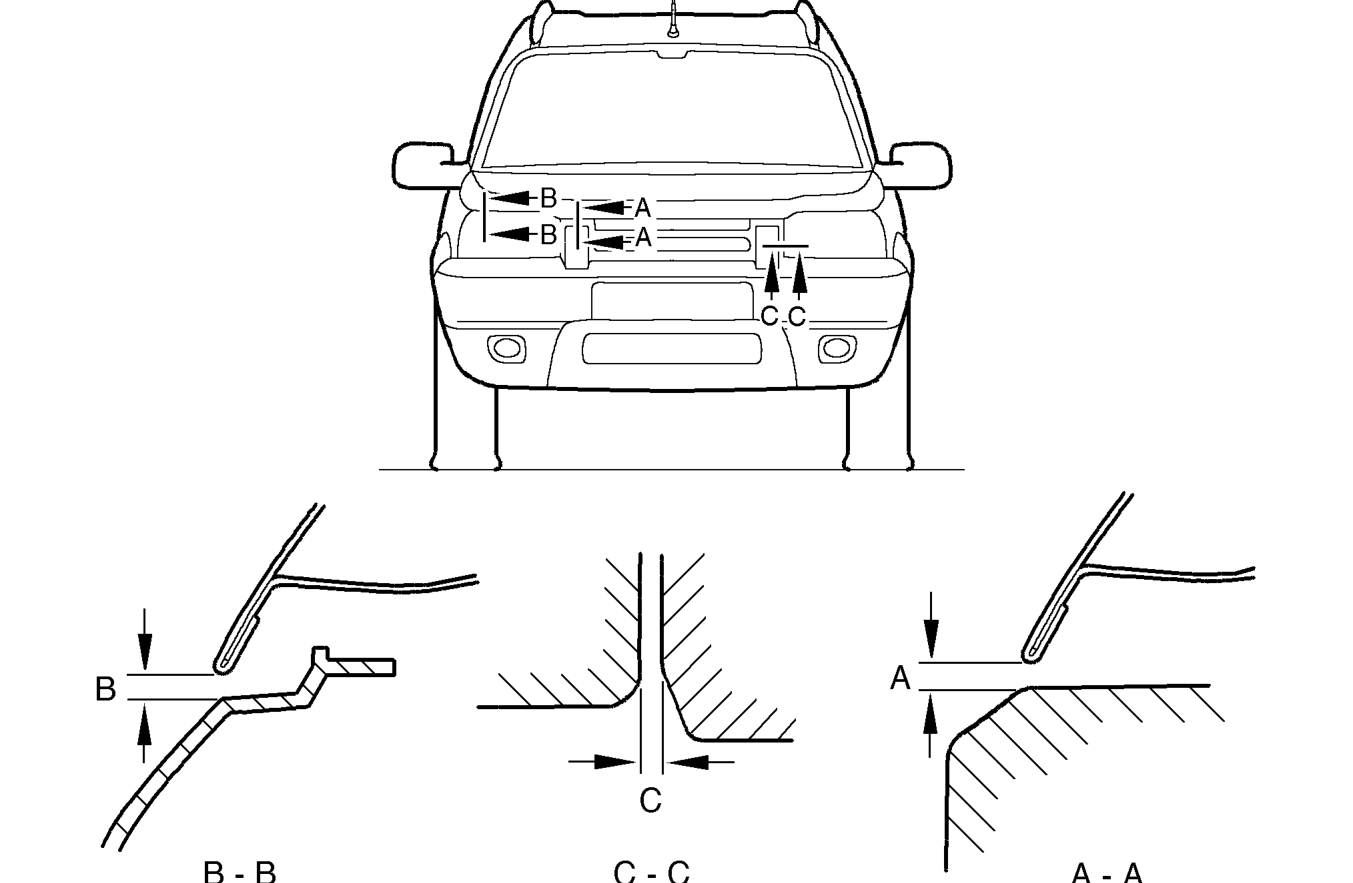

Gap A - Bonnet to Bumper overrider. Even gaps side to side, tolerance +/- 1.0mm.
Gap B - Bonnet to headlamp. Even gaps side to side, tolerance +/- 1.0mm.
Gap C - Headlamp to Bumper overrider. Visually even gaps within 2.0mm.
