Gaps and profiles (page 2 of 3)

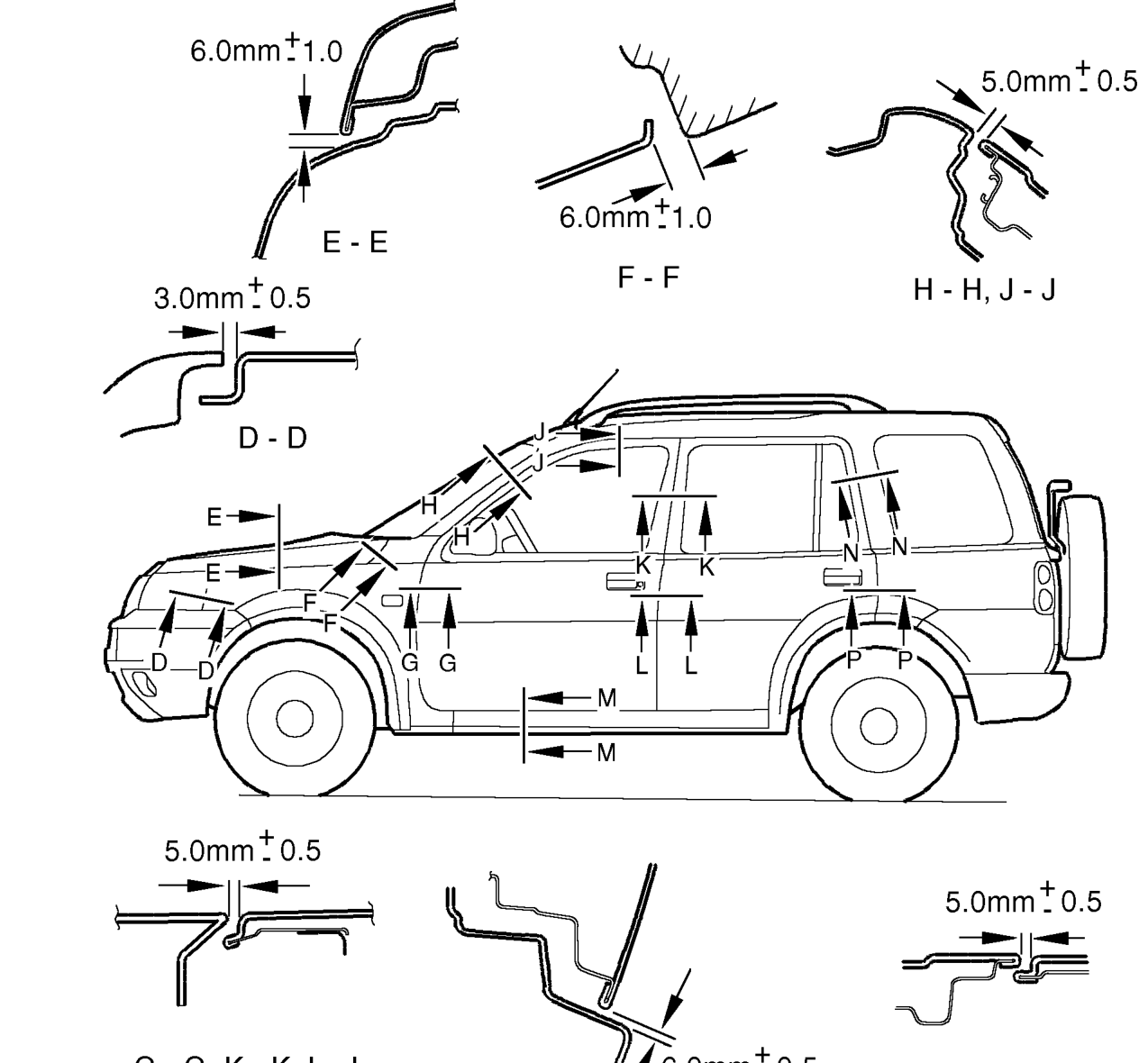

Section D-D, headlamp to wing, gap (3.0mm minimum). If the wing has been exposed to oven curing set gap to 4.4 mm to enable subsequent expansion.

Section E-E and F-F, wing to bonnet, gaps.

Section G-G, wing to front door, gap. Profile of wing to front door is 0.0mm nominal, tolerance +1.0/-0.0mm.

Section H-H and J-J, front door frame to body, gap. Profile of front door frame to body is -2.5mm nominal, tolerance +0.0/-1.0mm.

Section K-K and L-L, front door to rear door, gaps. Profile of front door to rear door is 0.0mm nominal, tolerance +0.0/-1.0mm.

Section M-M, bottom of door to sill, gap.

Section N-N and P-P, rear door to body, gaps. Profile of rear door to body is 0.0mm nominal, tolerance +1.0/-0.0mm.
