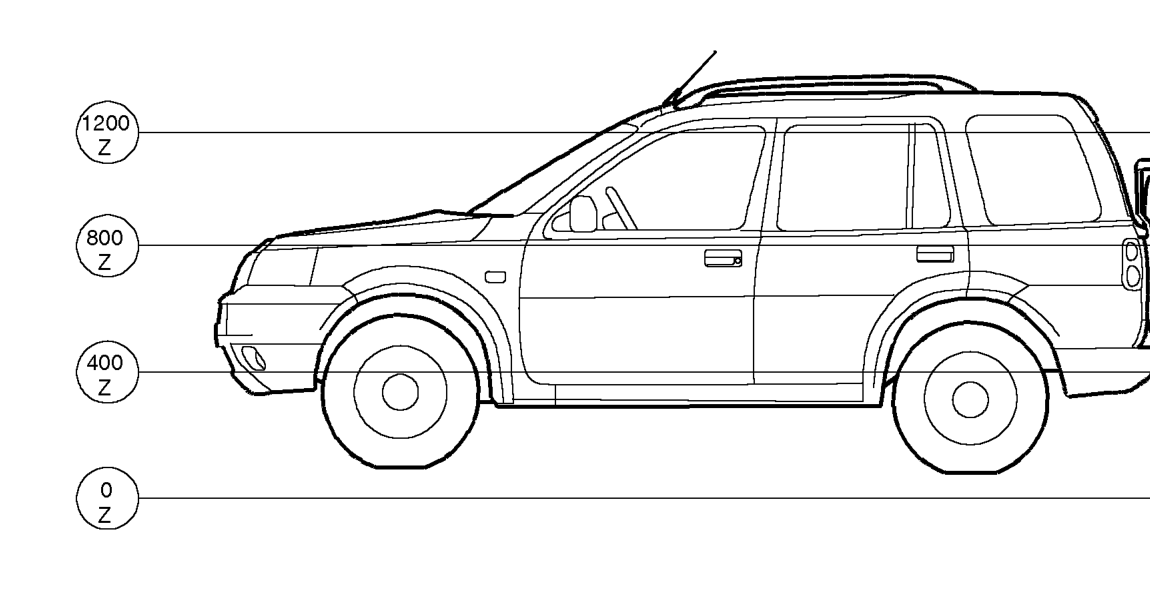

Underbody dimensional information (see following Figure)

Make

Land Rover

Model

Freelander Body Repair Manual

Year

1998 on

Section

Body dimensions › Underbody dimensional information (see following Figure)

InformationUnderbody dimensional information (see following Figure) · page 1 of 5

Underbody dimensional information (see following Figure)

No.	Description	X	Y	Z
1	Front sidemember, jig location hole	420	481	314
2	Front crossmember, jig location hole	340.5	350	170
3	Front damper, inboard fixing hole	975.5	515	693.5
4	Front subframe, front fixing	1036	386	98
5	Front subframe, rear outboard fixing	1326	429.5	127
6	Reinforcement outrigger, datum hole	1326	330	127
7	Front production location hole	1395	535	125
8	Trailing link fixing, centre hole	2765	463	160
9	Rear longitudinal, front jig location hole	2900	432	131.5
10	Rear subframe, front fixing	3302	465	274.5
11	Rear damper, rear fixing	3636	610	728.5
12	Rear subframe, rear fixing	3671.5	515	305
13	Rear longitudinal, rear jig location hole	4000	527	305
14	Rear production location hole	4122.5	410	301
