Land Rover Freelander Body Repair Manual (1998 on)03 · Information
03 · General

Gaps and profiles (page 3 of 3)

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Body dimensions
InformationGaps and profiles · page 3 of 3

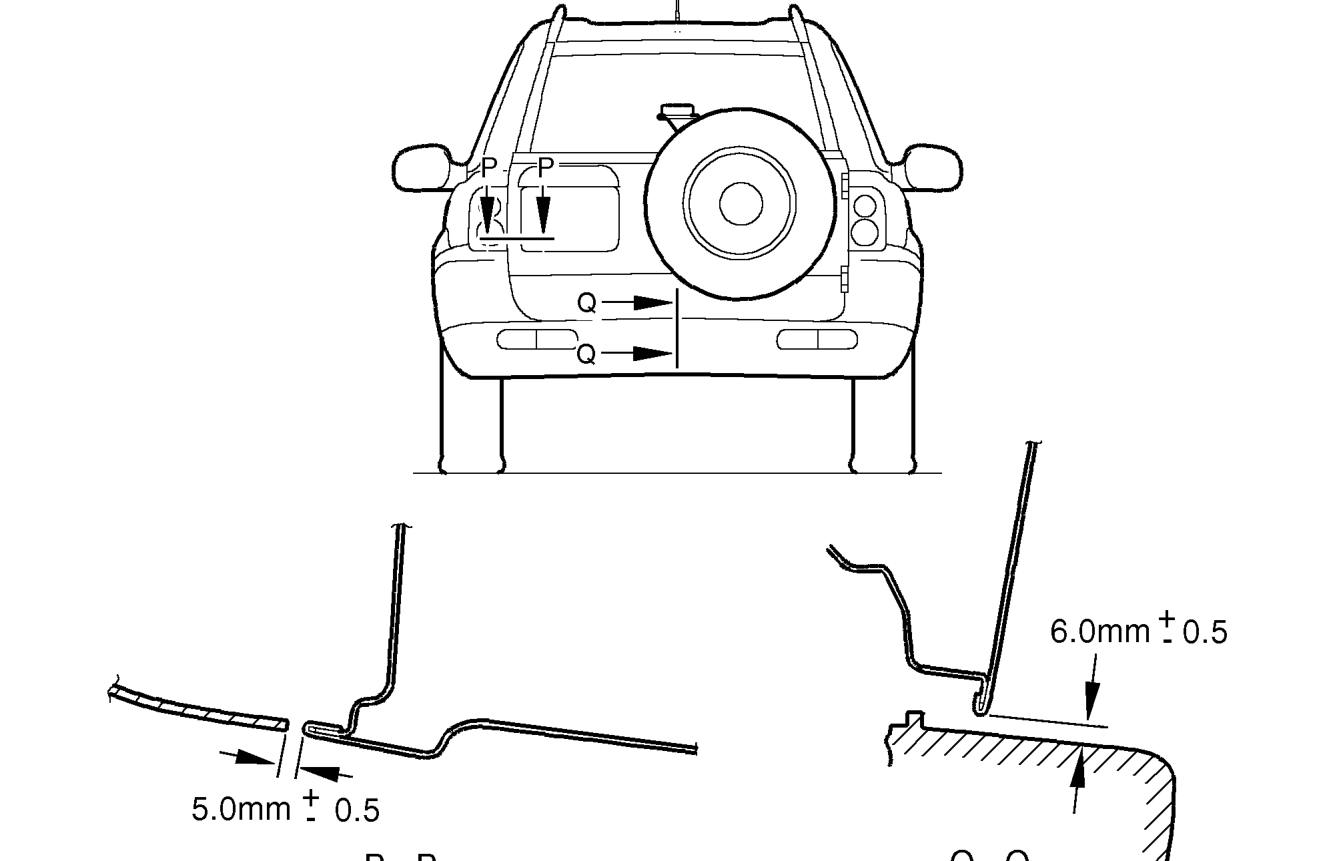

Diagram

Section P-P, taildoor to rear lamp, gap.

Section Q-Q, taildoor to rear bumper, gap.
