L322 Range Rover System Description and Operation
BRAKES
DESCRIPTION AND OPERATION
70-33

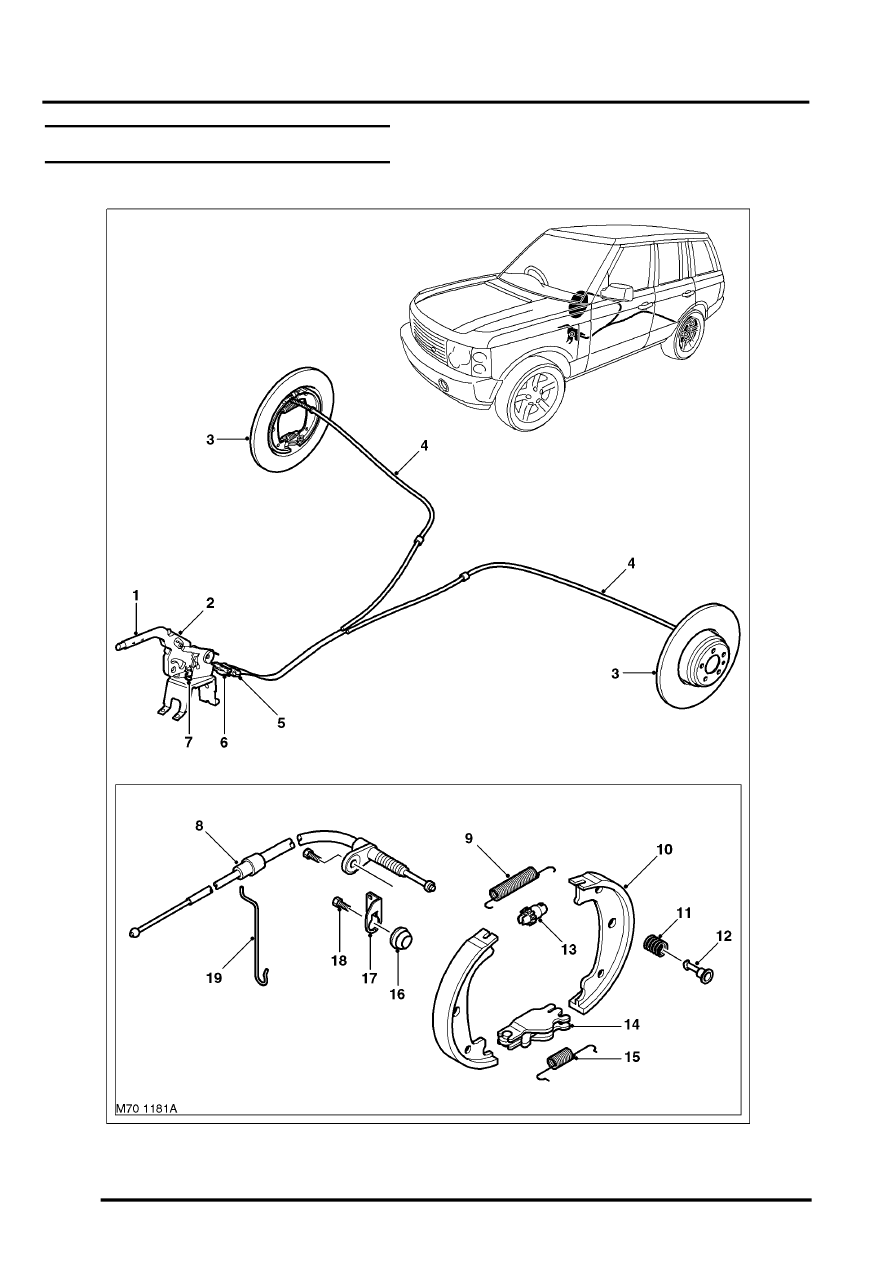

1 Hand brake lever
2 Ratchet mechanism (internal)
3 Rear brake
4 Hand brake cable
5 Hand brake cable inner cable connection
6 Cable divider
7 Brake lamp switch
8 Hand brake cable
9 Return spring
10 Brake shoe
11 Brake shoe retainer spring
12 Brake shoe retainer
13 Rear brake shoe adjuster
14 Hand brake shoe expander
15 Expander return shoe spring
16 Hand brake cable to trailing arm grommet
17 Hand brake cable mounting bracket
18 Bolt
19 Hand brake cable to body clip
