L322 Range Rover Service Procedures
SCREENS
REPAIRS
76-4-5
13. Fit pre-cut nozzle to sealer cartridge, remove
lid, shake out crystals and fit cartridge to
applicator gun. If necessary modify the nozzle
to achieve required bead section.

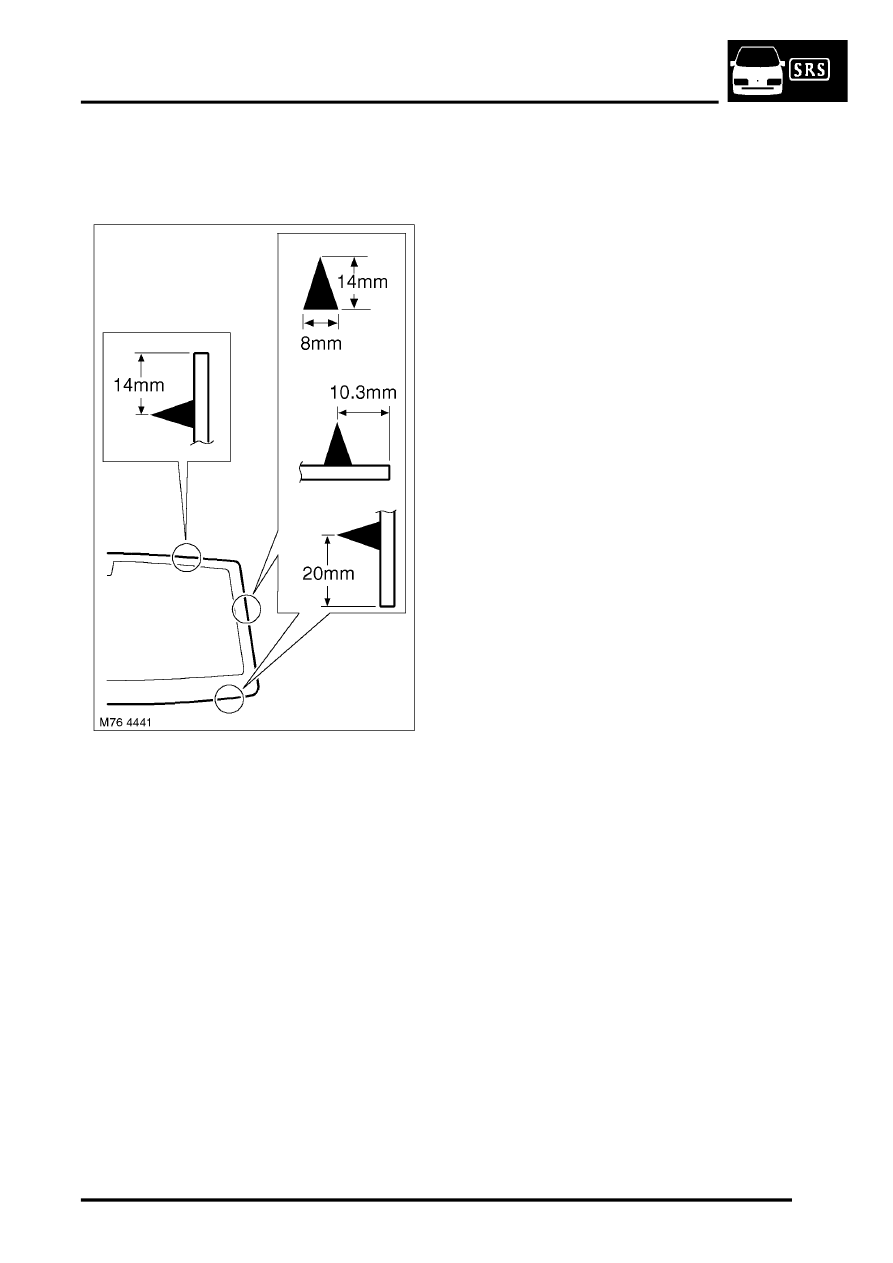

14. Apply a continuous bead of sealant to
windscreen as shown.
15. With assistance, fit and align windscreen.
Lightly press windscreen to seat sealer.
16. Remove protective covers and tape.
17. Test sealer for leaks, apply additional sealer if
necessary. If water is used, allow sealer to dry
before testing. Spray water around glass and
check for leaks. Mark any area that leaks. Dry
glass and sealer then apply additional sealer.
18. Connect screen heater multiplugs and align
harness.
19. Fit 'A' post upper finishers.
Trim finisher - 'A' post - upper.
20. Fit rain sensor, if fitted.
21. Fit interior mirror.
22. Fit windscreen lower finisher.
23. Fit windscreen side finishers.
24. Fit roof finishers.
