L322 Range Rover Service Procedures
STEERING
REPAIRS
57-9

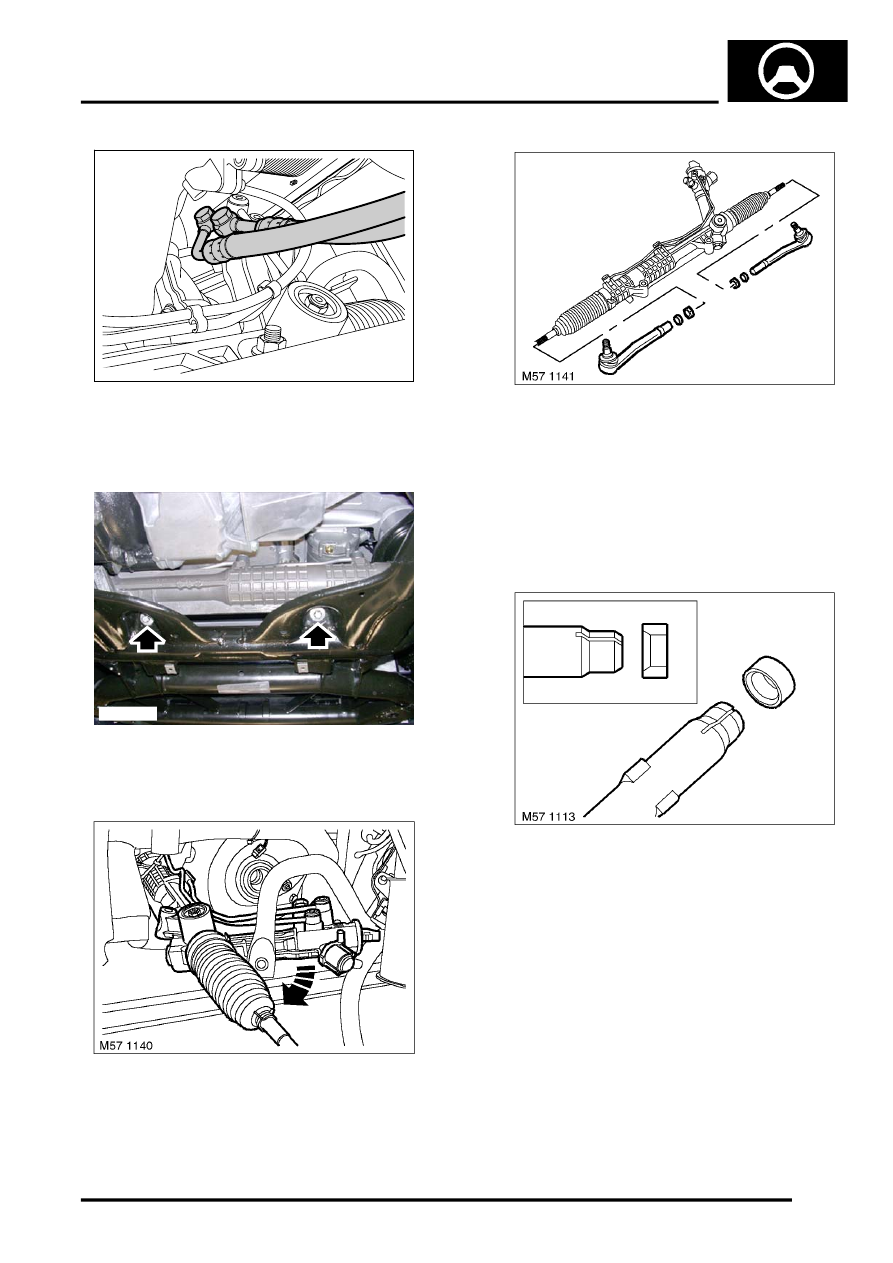

21. Note orientation, remove banjo bolts securing
fluid feed and return hoses to PAS rack and
discard sealing washers.
22. Remove 2 bolts and 2 nuts securing PAS rack,
discard nuts and bolts.
23. With assistance, carefully release and rotate
PAS rack. Remove rack from LH side.
24. Loosen track rod end locknuts.
25. Remove track rod ends, note the number of
turns for refit.
26. Remove and discard locking rings.
27. Remove locking nuts.
Refit
1. Fit locking nuts to track rods.
2. Fit locking rings to track rods, ensure taper
faces track rod end.
3. Fit track rod ends to track rods the number of
turns noted on removal.
4. Fit PAS rack, tighten new bolts and nuts to 100
Nm (74 lbf.ft), then tighten a further 90
°
.
5. Secure vacuum hose to PAS rack.
6. Clean fluid hoses and mating faces.
7. Using new sealing washers, fit PAS hoses and
tighten M16 banjo bolt to 40 Nm (30 lbf.ft) and
M14 banjo bolt to 36 Nm (26 lbf.ft).
8. Connect multiplug to PAS rack pinion sensor.
M57 1138
M57 1139
