Road test

PRE-DELIVERY INSPECTION

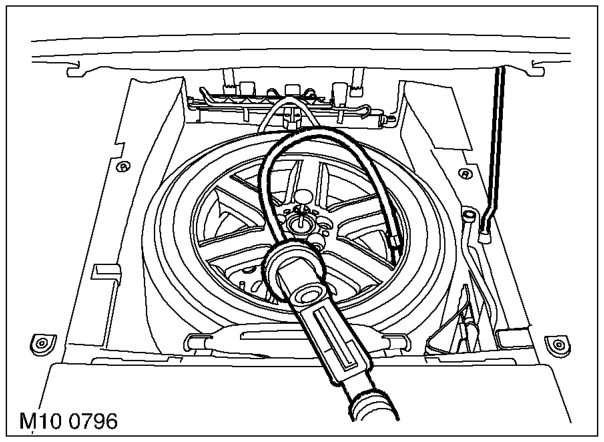

2. Lift spare wheel cover and support with prop.
3. Set tyre pressures: l Front 2.3 bar (33 psi). l Rear 2.5 bar (36 psi). l Full size Spare 2.5 bar (36 psi). l Space Saver Spare 4.1 bar (60 psi).
4. Fit spare wheel cover and secure in clips.
5. Close upper and lower tailgates.
6. Check the exterior of the vehicle is clean and free from damage.

Road test

1. Whilst vehicle is on test, press the fascia mounted Tyre Pressure Monitor button to calibrate the tyre pressure ECU (If fitted).
2. Before driving vehicle, check the operation of: l Lights, indicators, wipers, wash/wipe and hazard warning. l Seats and seat belts l Fascia switches l Handbrake
3. Start vehicle and check operation of: l Starter/Inhibitor switch l Electric mirrors, including power fold l Sunshine roof, if fitted
4. During the road test, ensure the transferbox range change functionality is tested by using the following method. l With engine running and handbrake applied, select neutral on automatic gearbox l Request range change for low gear with switch - wait until change is complete. l Request range change into high gear with switch - wait until change is complete. l Repeat 5 times. l Ensure high range is left selected.
5. Whilst driving the vehicle check the operation of cruise control and gearchange including sequential operation.
6. Check for any unusual noises from power train, suspension or braking system. Investigate any findings.
7. Check for squeaks and rattles from vehicle interior. Investigate any findings.
8. Satellite Navigation if fitted: Check after test drive that the satellite navigation has established global position.
9. Press the menu button on the MFD, using the right hand rotary control follow the screen icons. Navigate until the global position can be read.
10. Position vehicle on lift.

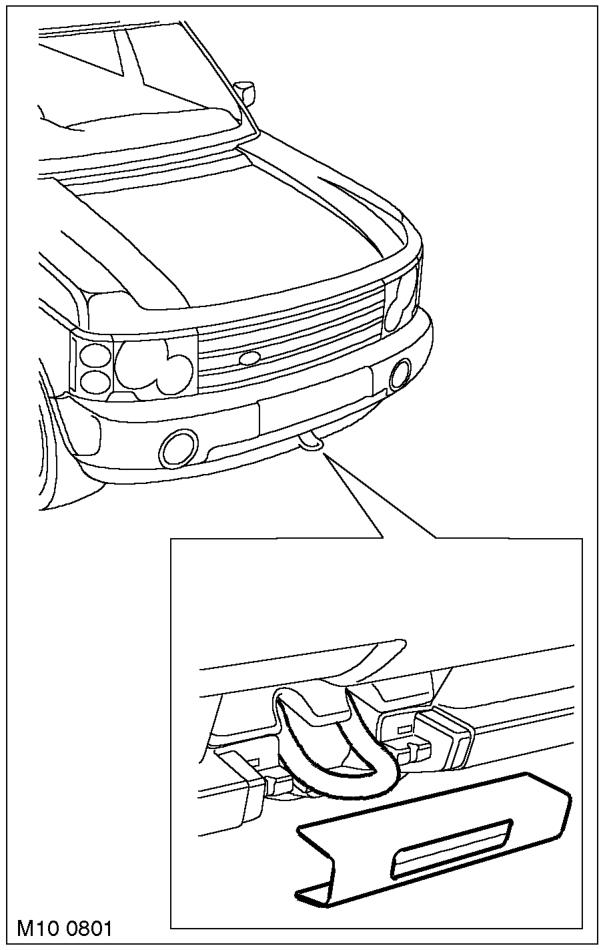

11. Fit front bumper towing eye cover.
12. Raise vehicle on lift.
13. Visually check beneath vehicle for leaks from power train components.
14. Lower vehicle.

Quality assurance checks

1. Update the vehicle service record.
2. Check the Service Action Bulletin register, ensure all current outstanding bulletins are completed prior to customer handover.
3. Ensure a copy of the PDI sheet is added to the Customer/Vehicle history file.
4. Ensure all relevant vehicle details are included in the Service Portfolio and are endorsed with the dealers stamp.
