Land Rover L322 Range Rover Pre-Delivery Inspection Manual03 · Vehicle Interior
03 · Body & interior

Vehicle exterior

Make
Land Rover
Model
Range Rover L322 Range Rover Pre-Delivery Inspection Manual
Section
Vehicle exterior
Vehicle InteriorVehicle exterior
Diagram

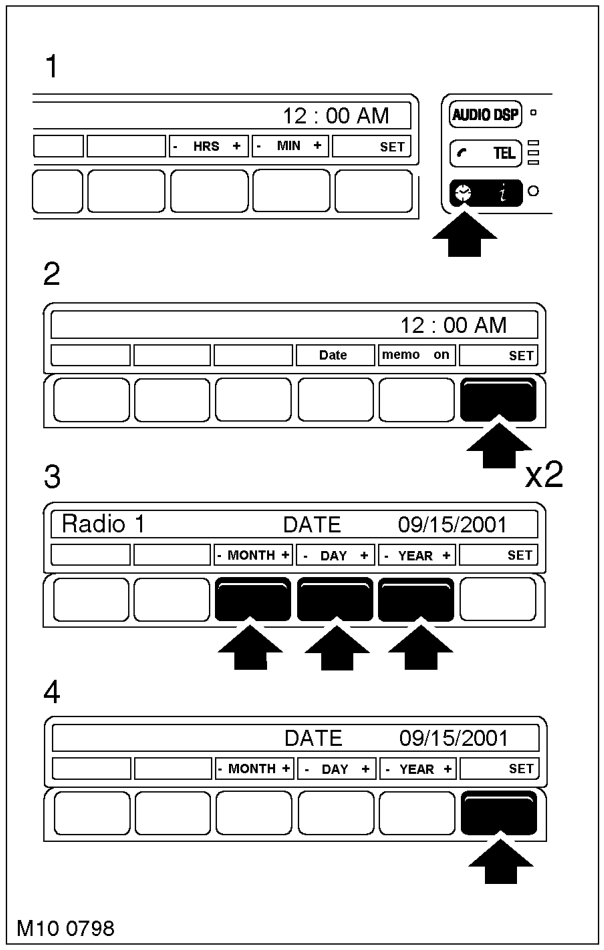

  1. Following the screen icons and using the 4 indicated buttons, set the Day, Month and Year.
  2. Turn ignition to the off position and remove key from switch.
  3. Open upper and lower tailgates.
Following the screen icons and using the 4 indicated buttons, set the Day, Month and Year.

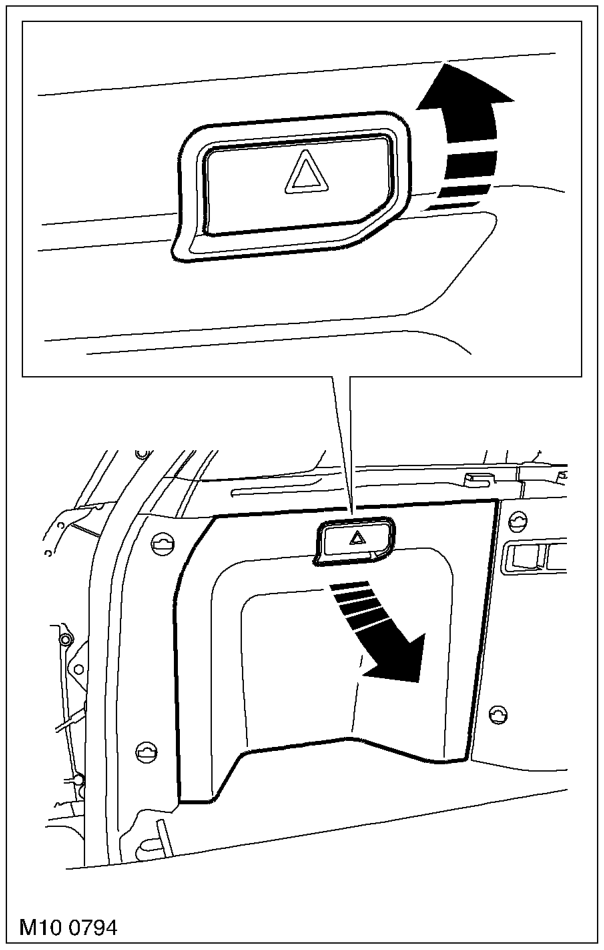

  1. Remove LH loadspace access panel.
Remove LH loadspace access panel.

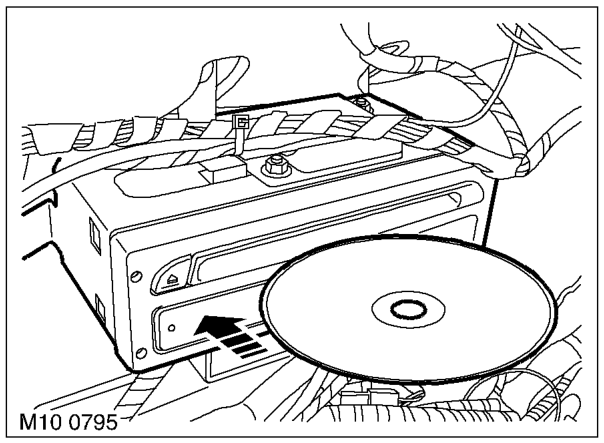

  1. Remove satellite navigation map CD from packaging and place in drive.
  2. Fit access panel to rear quarter panel.

Vehicle exterior

  1. Inspect road wheels and tyres for damage, check wheel retaining nuts for torque, 140 Nm (103 lbf.ft).
