TRANSFER BOX
42
OVERHAUL

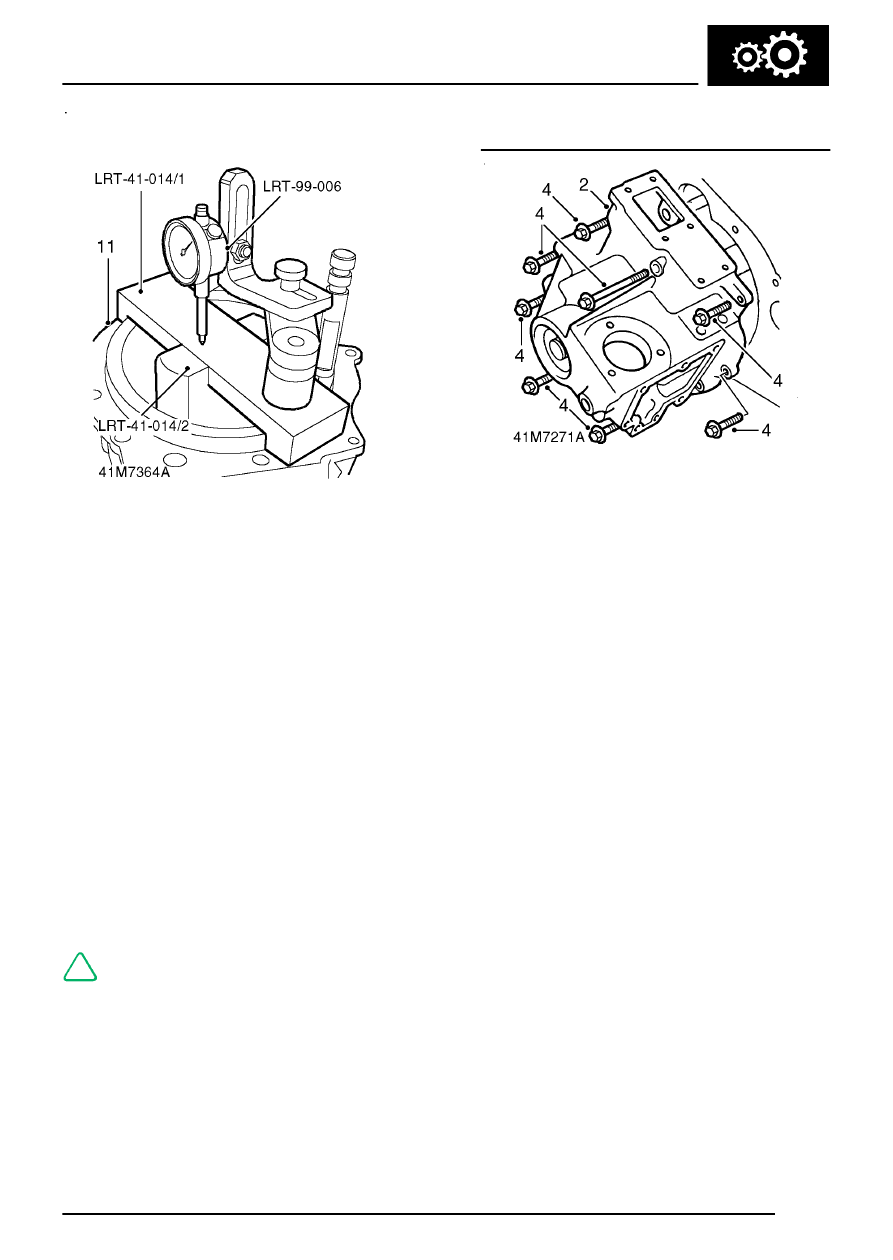

8. Position propeller shaft flange holding tool
LRT-51-003 to output flange.
9. Restrain flange, tighten nut to 162 Nm
(120 lbf.ft).
10. Compress differential lock selector spring and
fit to selector fork.
11. Locate fingers of selector fork in groove in dog
clutch.
12. Fit differential lock selector shaft ensuring end
of shaft is located in recess in rear of housing.
13. Rotate selector shaft until the two flats for the
retaining clips are at right angles to the cover
plate mating face.
14. Compress selector spring and fit retaining clips
at each end of spring.
CAUTION: Ensure ends of spring are fully
seated in recess in clips.
