LT230Q Transfer Box
TRANSFER BOX
OVERHAUL
43

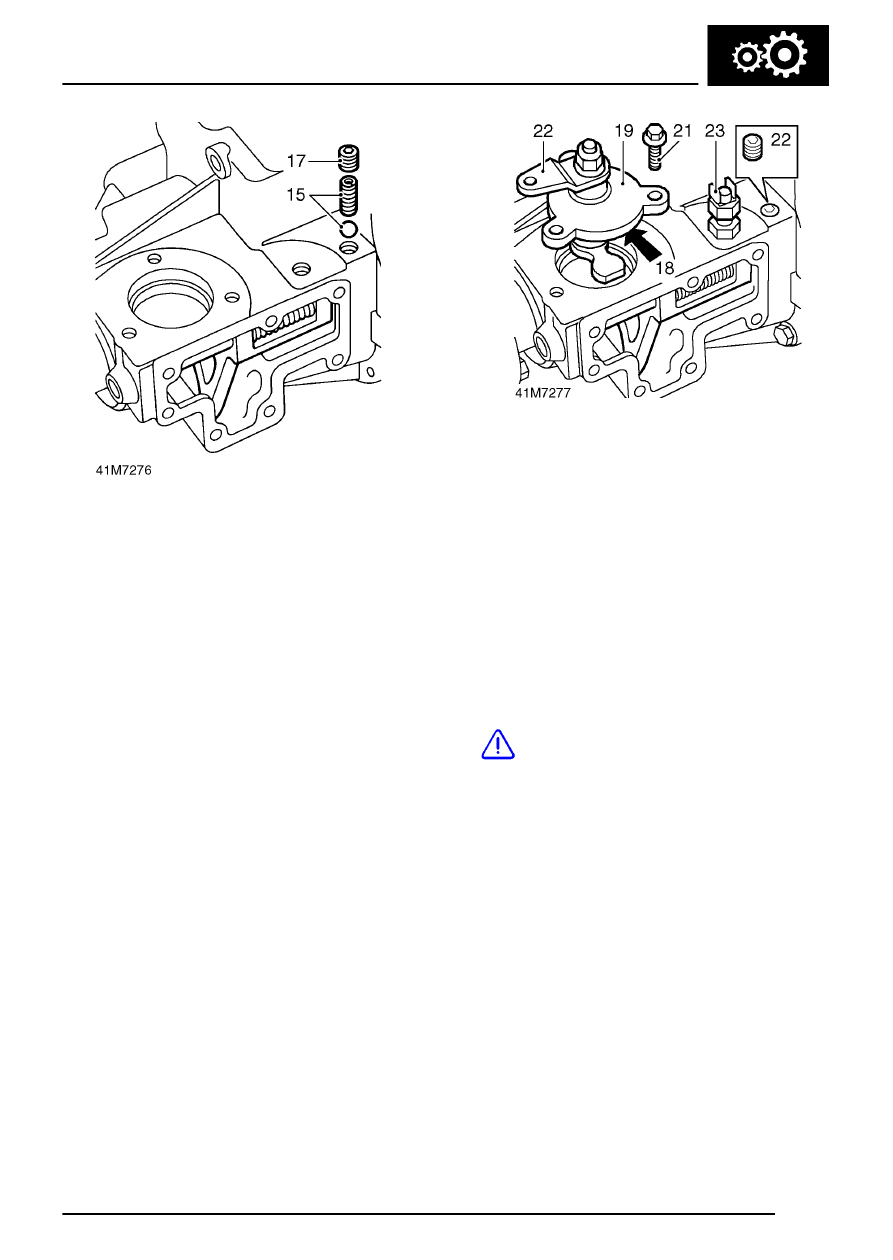

15. Fit differential lock detent ball and spring.
16. Apply Loctite 290 to threads of detent plug.
17. Fit and tighten detent plug then unscrew 2 full
turns.
18. Ensure ’O’ ring is correctly located on
differential lock selector housing.
19. Fit differential lock selector assembly ensuring
that selector finger is located in recess in
differential lock selector shaft.
20. Apply Loctite 290 to threads of bolts.
21. Fit bolts and tighten to 25 Nm (18 lbf.ft).
22. Operate differential lock selector lever and
check that differential lock detent ball can be
felt to positively engage and disengage with
grooves in selector shaft; screw detent plug in
or out until setting is correct.
23. Apply Hylomar PL32 sealant to threads of
differential lock warning lamp switch, fit switch.
CAUTION: Do not allow sealant to contact
switch plunger. Do not tighten locknut or
fit differential lock side cover until switch
has been adjusted.
