Radio – fault diagnosis

Make

Land Rover

Model

Range Rover P38 Electrical Troubleshooting Manual

Year

1997–1999

Section

Fault diagnosis › Radio – fault diagnosis

RadioRadio – fault diagnosis

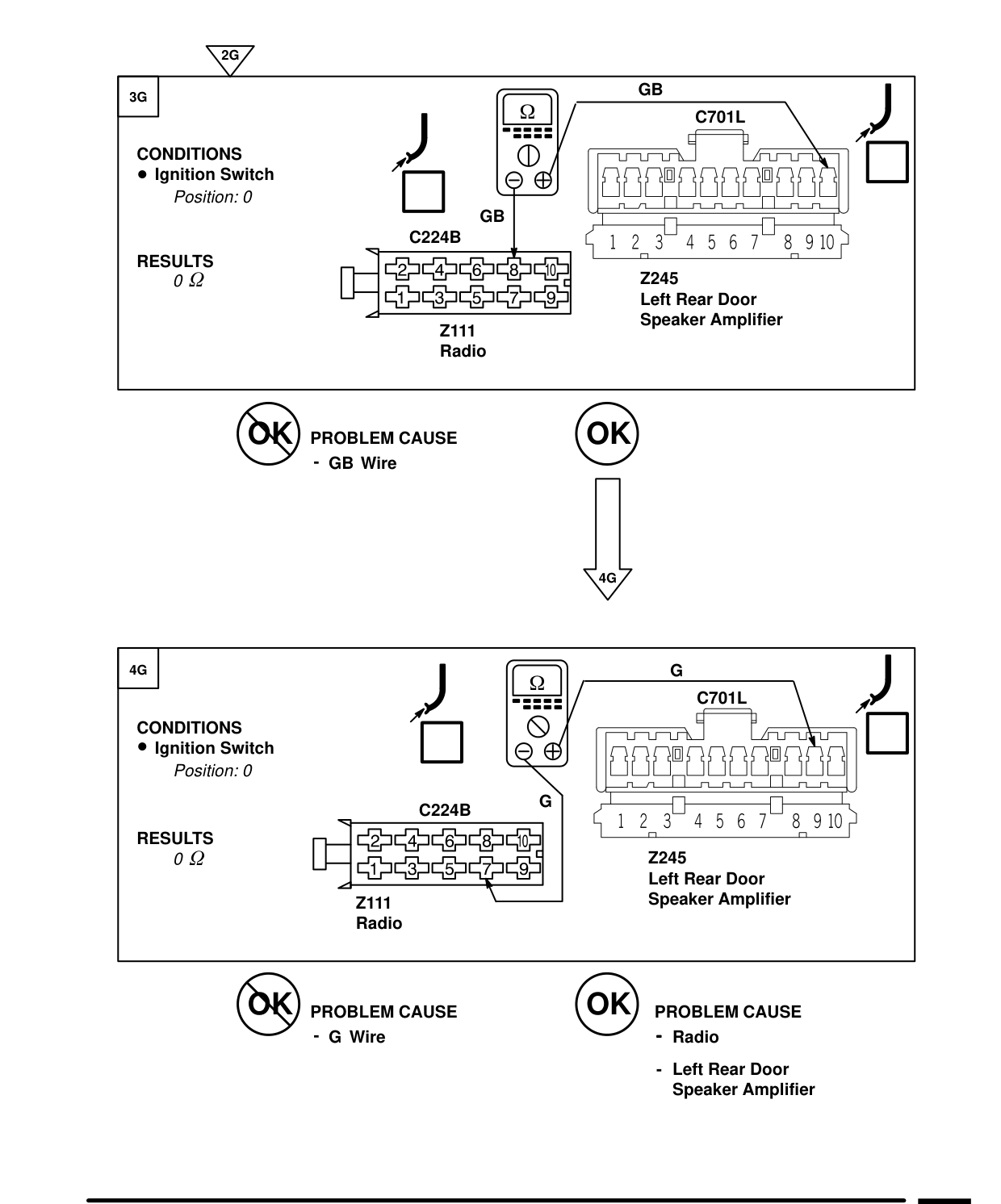

RADIO – FAULT DIAGNOSIS

2G

3G

CONDITIONS Ignition Switch

Position: 0

RESULTS

0

OK PROBLEM CAUSE - Wire GB

4G

CONDITIONS Ignition Switch

Position: 0

RESULTS

0

Z111 Radio

OK PROBLEM CAUSE - G Wire

GB

C701L

GB C224B

Z245 Left Rear Door Speaker Amplifier Z111 Radio

OK

4G

G

C701L

G C224B

Z245 Left Rear Door Speaker Amplifier

OK PROBLEM CAUSE - Radio Left Rear Door - Speaker Amplifier

15 Electrical
