RADIO – FAULT DIAGNOSIS

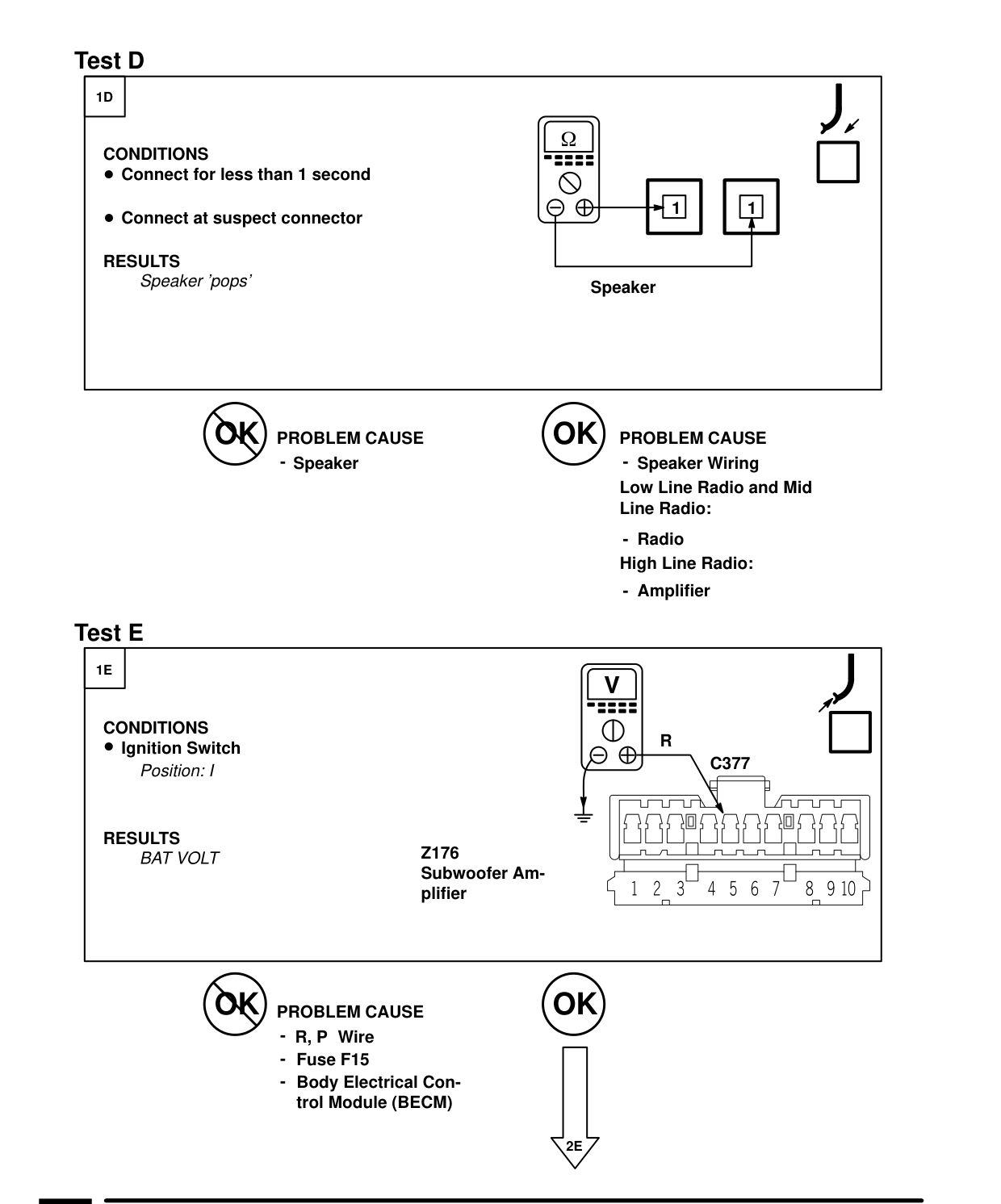

Test D 1D

CONDITIONS Connect for less than 1 second

Connect at suspect connector

RESULTS

Speaker ’pops’

OK PROBLEM CAUSE - Speaker

Test E 1E

CONDITIONS Ignition Switch

Position: I

RESULTS

BAT VOLT

OK PROBLEM CAUSE - R, P Wire - Fuse F15 - Body Electrical Con- trol Module (BECM)

1 1

Speaker

OK PROBLEM CAUSE - Speaker Wiring Low Line Radio and Mid Line Radio: Radio - High Line Radio: Amplifier -

R C377

Z176 Subwoofer Am- plifier

OK

2E

15 Electrical
